Electric Trailer Pump

Feature

Electric Motor: The pump is powered by an electric motor, which offers several benefits such as quieter operation, reduced emissions, and lower maintenance compared to diesel-powered pumps.

Trailer-mounted: Being mounted on a trailer makes the pump highly mobile and versatile. It can be easily transported to different job sites, making it ideal for construction projects with varying locations.

Concrete Delivery: Electric trailer pumps are designed to efficiently deliver concrete to construction sites. They can pump concrete at high volumes and pressures, allowing for fast and accurate placement of concrete in various structures.

Versatility: These pumps can handle different types of concrete mixes, including harsh mixes with aggregates, making them suitable for a wide range of construction applications such as building foundations, slabs, walls, and more.

Efficiency: Electric motors are known for their energy efficiency, resulting in lower operating costs over time. They also offer precise control over pumping operations, ensuring accurate placement of concrete with minimal waste.

Appliction

Electric trailer pumps find applications in a variety of construction scenarios where efficient and precise concrete placement is essential.

High-Rise Construction:
Electric trailer pumps are frequently used in high-rise construction projects where concrete needs to be pumped to significant heights. Their mobility allows for easy setup and relocation, making them suitable for pumping concrete to upper floors of skyscrapers and tall buildings.

Large-Scale Infrastructure Projects:
These pumps are ideal for large-scale infrastructure projects such as bridges, highways, tunnels, and dams, where concrete placement may be challenging due to the size and scope of the project. Electric trailer pumps can efficiently deliver concrete to various locations within the project site.

Residential Construction:
In residential construction, electric trailer pumps are used for tasks like pouring foundations, slabs, driveways, and patios. Their mobility and versatility make them well-suited for navigating through residential neighborhoods and accessing tight spaces.

Commercial Construction:
For commercial construction projects such as shopping malls, office buildings, and industrial facilities, electric trailer pumps offer the flexibility to pump concrete to different areas of the site, including interior spaces and elevated platforms.

Technical Parameters

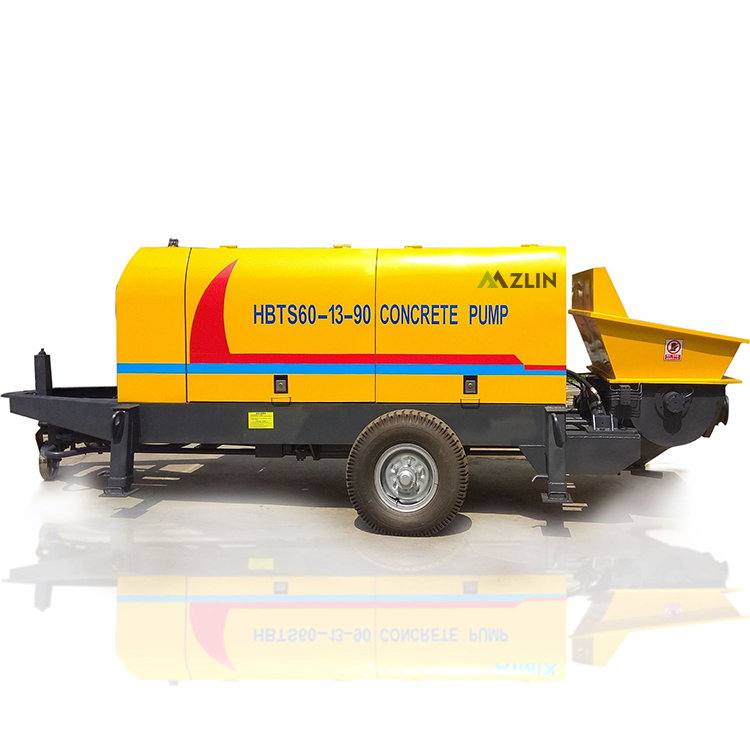

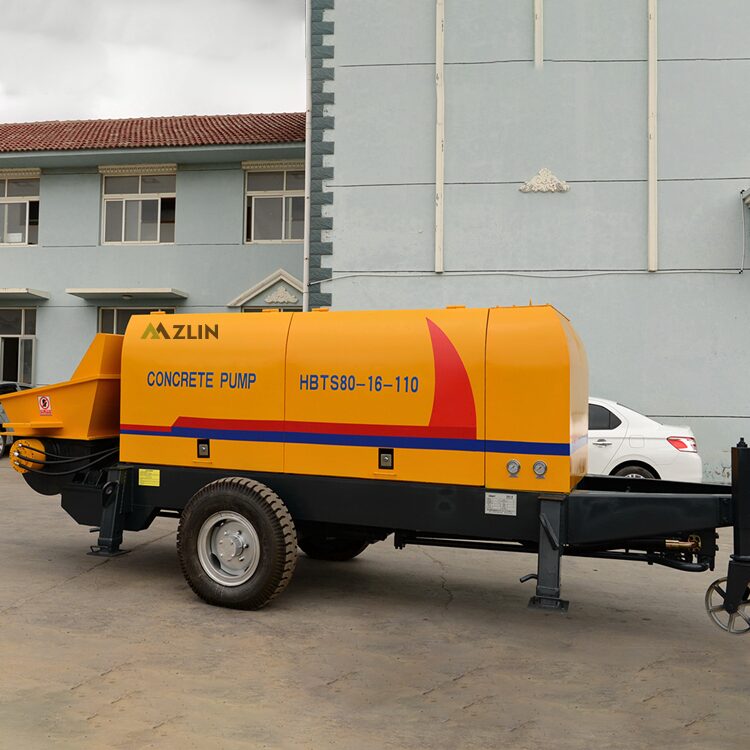

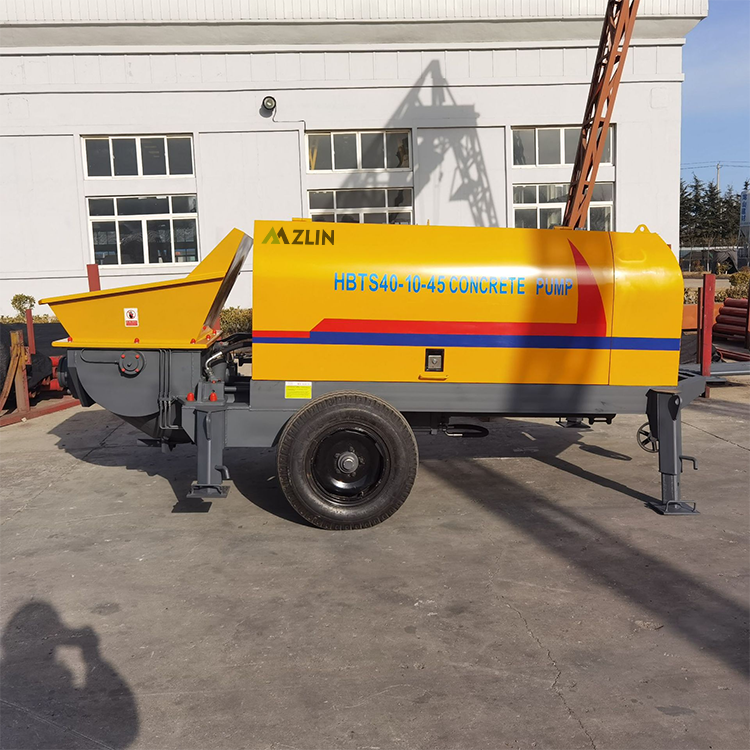

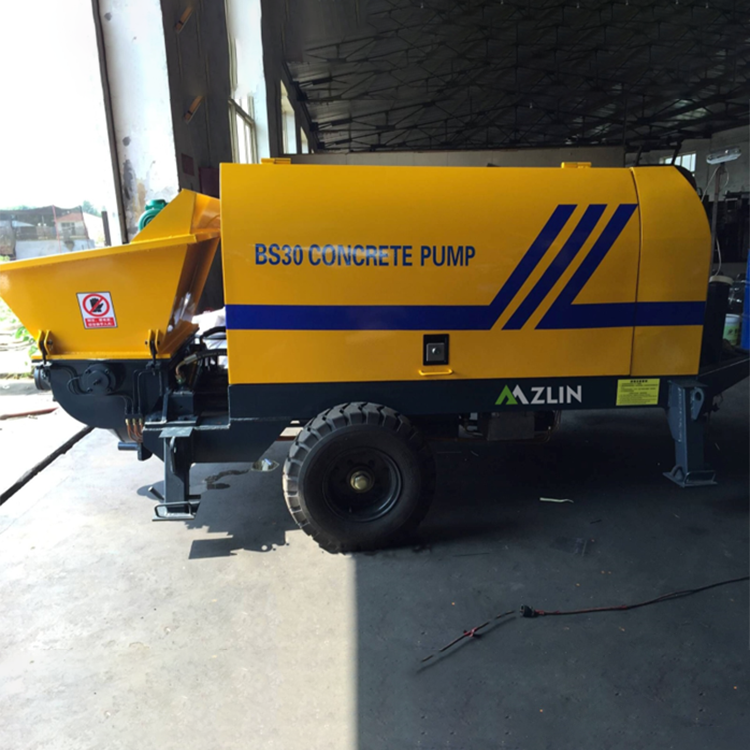

Model	BS30D-10-37	HBTS40-10-45	HBTS60-13-90	HBTS80-16-110
Max. theo. concrete output	30 m3/h	40 m3/h	84/46	84/46
Max. concrete pumping pressure	10 MPa	10 MPa	13/6.3	16/8.3
Distribution valve type	S Valve	S Valve	S Valve	S Valve
Concrete cylinder diameter × stroke	Ф140×845mm	Ф180x1100mm	Ф200×1650	Ф200×1800
Hopper capacity × feeding height	400×1100mm	400×1250mm	800×1400	600×1400
Outlet diameter	Ф100mm	Ф150mm	Ф180	Ф180
Electrical engineering power	37kw	45kw	90	110
Rotate speed	1480 r/min	1480r/min	1480	1480
Circuit type	Open circuit	Open circuit	Open circuit	Open circuit
Pumping system pressure	18 MPa	28 MPa	28	28
Mixing system pressure	6-8 MPa	8 MPa	8-6	8-6
Capacity of oil tank	260L	370L	560	560
The biggest transportation is away from vertically (/Level)	100/300m	100/600m	160/800	180/1000
Max. aggregate diameter	Slick scree: 20mm	Slick scree:40 – 50mm Scree: 30mm	Scree:40 50	Scree:40 50
Inside diameter of delivering pipe	Ф80-Ф100mm	Ф125mm	Ф125	Ф125
Dimensions (LWH)	3400X1420×1600mm	4700×1750×1600mm	5800×2000×1750	5800×2000×1750
Total weight	2300kg	3200kg	5500	5500

FIND A REPUTABLE SUPPLIER - ZLIN

ZLIN concrete trailer pump for sale has been popularized in many regions around the world and exported to more than 40 countries, bringing benefits to users. So, what is the price of concrete trailer pump?

It should be noted that the price of concrete trailer pumps in the market currently ranges from tens of thousands to hundreds of thousands per unit. Compared with other counterparts, ZLIN concrete pump for sale is cheap and of excellent quality, which is worthy of consideration by the majority of builders.

It is worth noting that the specific configuration and price of each trailer pump needs to be determined according to your needs. Our engineers will design the trailer pump configuration for you according to your specific working conditions and pumping needs, and only provide you with the most cost-effective cement trailer pump. If you want to learn more about it and get a specific quote, you can contact us through ZLIN’s official website and our service staff will contact you as soon as possible.
