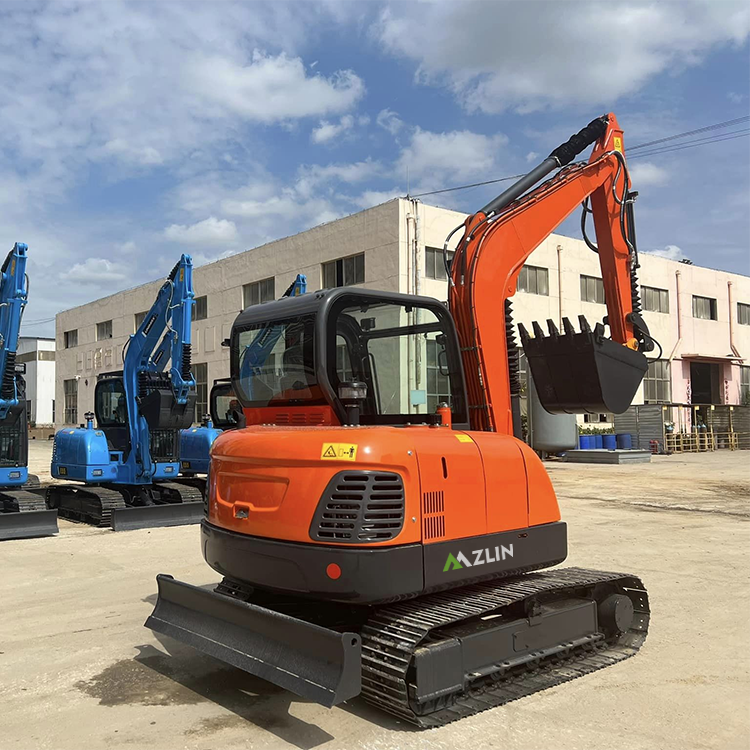

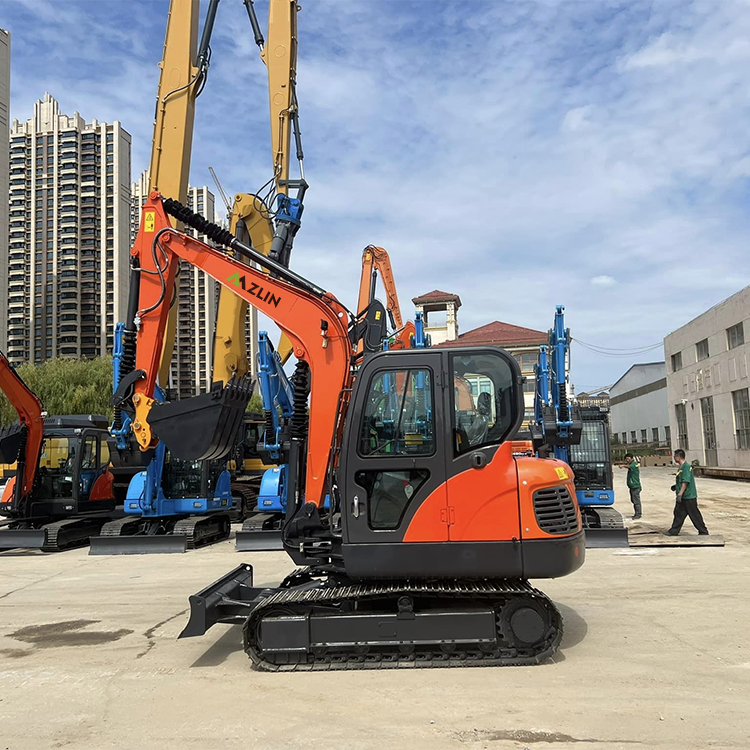

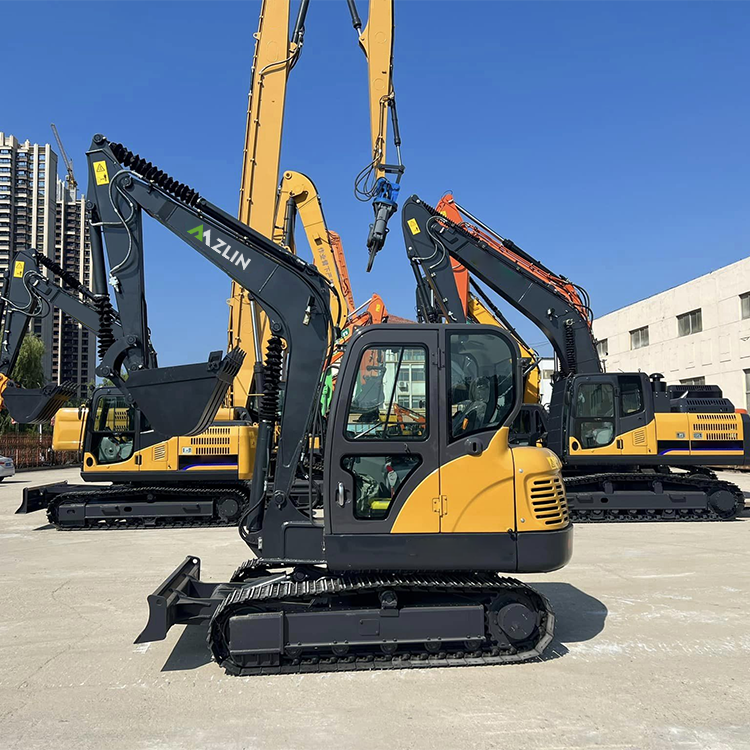

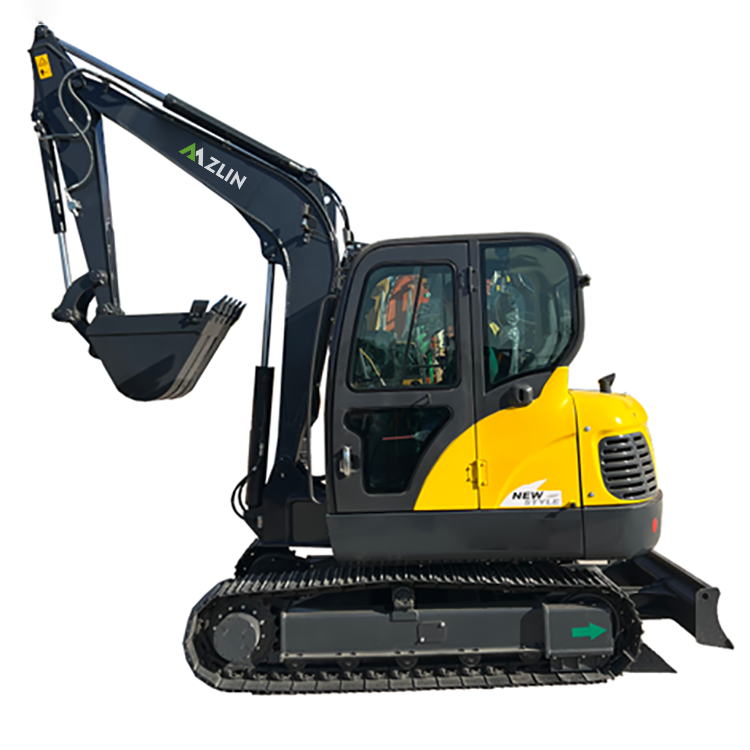

ZL65 Crawler Excavator

 Email: [email protected]
 Whatsapp: +639623342285

EN

Home > Products > ZL65 Crawler Excavator

Crawler excavators are equipped with a rotating cab and a boom, stick, and bucket assembly for digging, lifting, and loading materials. They are commonly used in construction, mining, forestry, demolition, and landscaping projects. With their powerful engines and hydraulic systems, crawler excavators offer high productivity and efficiency in digging trenches, foundations, and trenches, as well as handling materials such as soil, rocks, and debris.

Chat [email protected]

Feature Appliction Technical Parameters

Feature

1. Equipped with Yanmar engine, powerful output and fuel saving;
2. High flexibility, able to operate flexibly in narrow spaces;
3. Strong excavation ability, quickly excavate large amounts of soil and rock;
4. Good stability, the stability of the machine can be maintained through the support of the tracks;
5. Easy to operate, precise control of various actions can be achieved through hydraulic control systems

Appliction

Crawler excavator is a tracked machine designed for digging, loading, earthmoving, grading, lifting and carrying jobs and is classified by its mode of locomotion. The chain wheel system in crawler excavator allows them to slide down and scale hills with less risk, making them suitable for grading hilly areas and landscaping uneven terrain. Crawler excavators are widely used in multiple applications like Construction, Mining & Quarry.

Technical Parameters

Performance parameters	Weight	5.95T
	Bucket capacity	0.21m3
	Engine rated power	35.5kw/2200rpm
	Swing speed	9.5min-1
	Travel speed (high/low)	4.1/3.0km/h
	Ground specific pressure	32kpa
	Gradeability (%)	70
	Digging force	37.7KN
	Boom length	3000mm
	Arm length	1600mm
Working range	Maximum digging depth	3820mm
	Maximum digging height	5760mm
	Maximum unloading height	4030mm
	Maximum digging radius	6155mm
	Minimum turning radius	2205mm
Dimensions	Transport length	5855mm
	Transport arm height	2580mm
	Wheelbase	1960mm
	Radius of gyration platform end	1690mm
	Counter weight ground clearance	720mm
	Track gauge	1485mm
	Total width of undercarriage	1885mm
	Width of upper structure	1790mm
	Width of track shoe	400mm
	Ground clearance	360mm
	Total length of travel mechanism	3750mm
	Cabin height	845mm
Working range diagram
