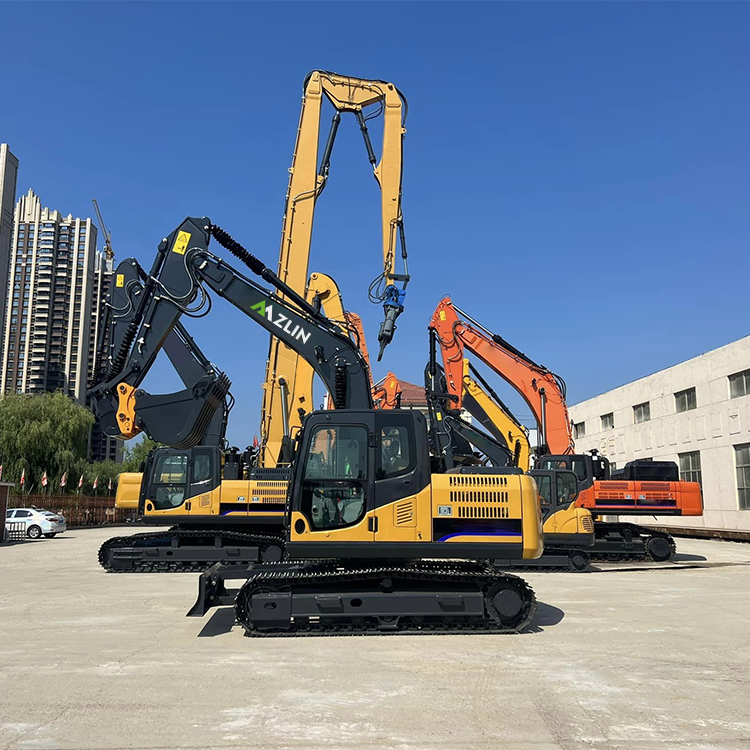

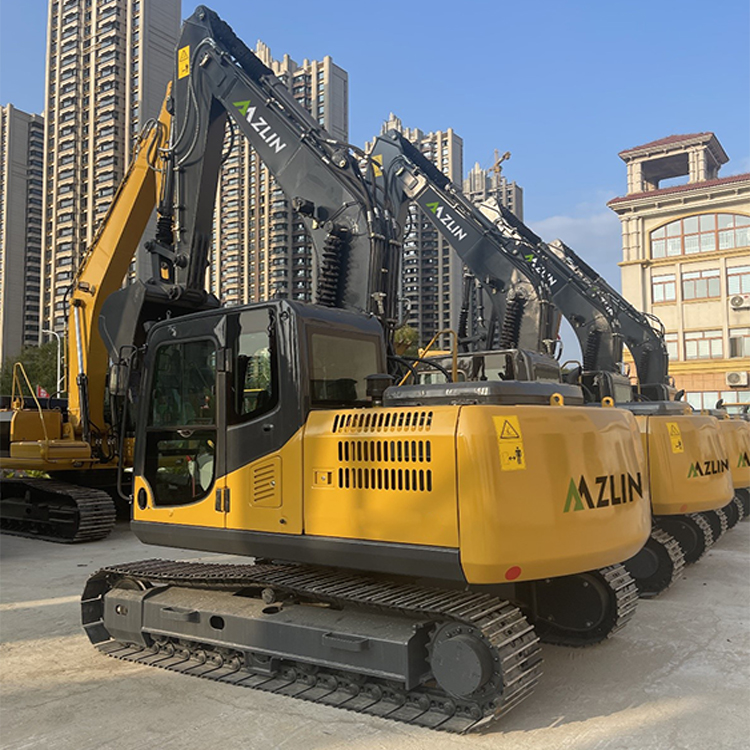

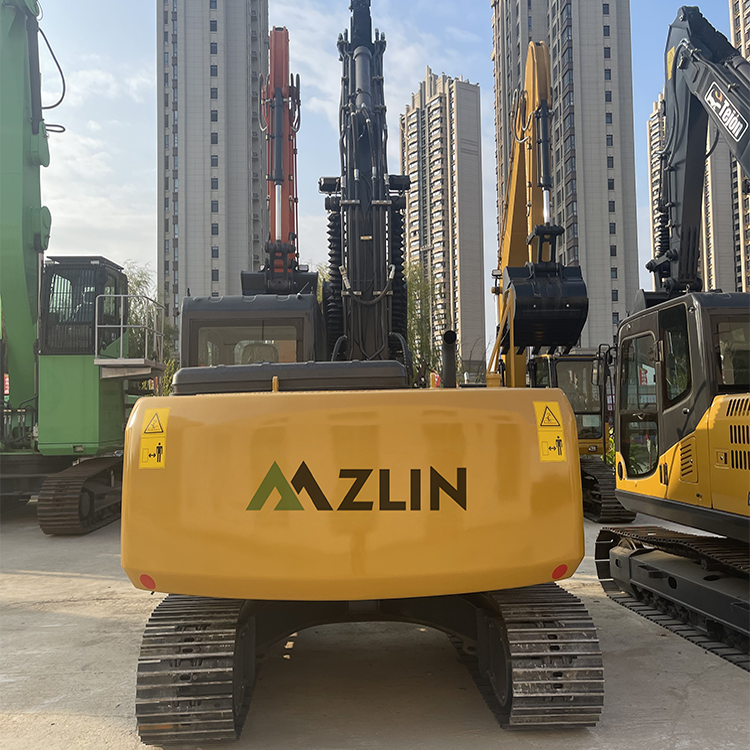

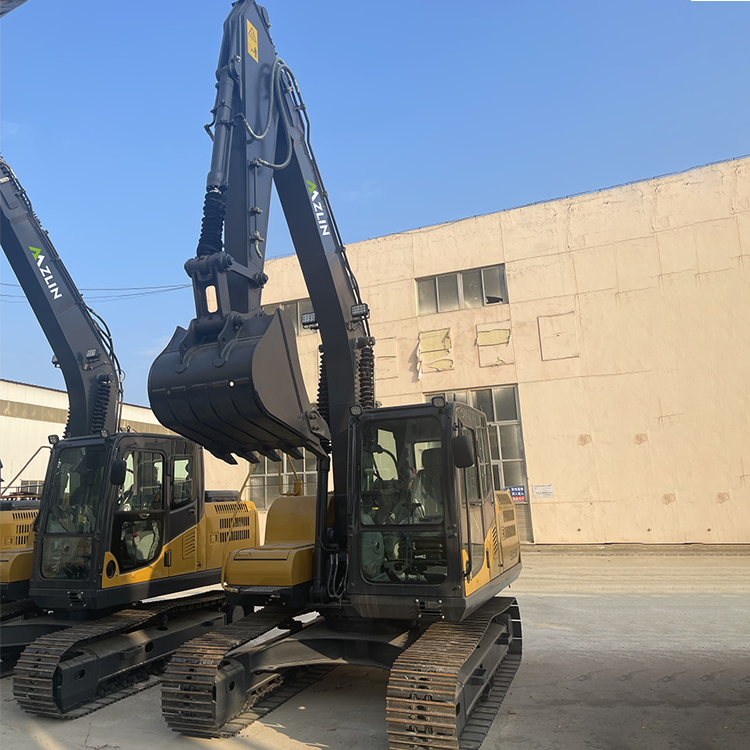

ZL150 Crawler Excavator

A Crawler Excavator, also known as a tracked excavator, is a large construction machine widely used in earthmoving projects and construction sites. It utilizes tracks as its walking mechanism, providing excellent maneuverability and stability even in rough terrains. Powered by a hydraulic system, the Crawler Excavator boasts strong excavation capabilities and precise control, enabling it to perform tasks such as digging, loading, leveling, and demolition with ease.

Chat [email protected] Inquiry
FEATURES Appliction Technical Parameters

FEATURES

  • Highly efficient hydraulic control system, and powerful travel traction;
  • High strength frame structure and larger ground clearance, safe and open engine hood, convenient and fast to maintenance;
  • Equipped with ISUZU or CUMMINS engine, stable and strong power supply;
  • The independent rotary pump ensures priority of rotary function and improves productivity;
  • Ergonomically designed seats enhance driving comfort, improve work efficiency;
  • Adopts large glass windows to provide the driver with the best visibility.

Appliction

Crawler hydraulic excavator is a widely used mechanical equipment in the field of engineering construction. It has strong excavation capabilities and flexible operational performance, suitable for excavation operations under various soil and geological conditions.

Crawler hydraulic excavators can be used for engineering projects such as earthwork excavation, foundation construction, road construction, and mining. It can excavate deep tunnels or ditches, clean debris and obstacles, and perform soil leveling and compaction operations.

Technical Parameters

Performance Parameters Weight 14.8T
Bucket capacity 0.53-0.58m³
Engine rated power 75kw/99hp
Emission standard Euro III
Displacement 5.8L
Cylinder 6
Swing speed 10.1min-1
Travel speed (high/low) 5.04/3.01km/h
Ground specific pressure 0.35-0.36kg/cm2
Gradeability (%) 70%
Digging force Standard 77.4KN/Pressurized 81.3KN
Boom length 4600mm
Arm length 2500mm
Working range Max. digging depth 5625mm
Max. digging height 8750mm
Max. unloading height 6300mm
Max. digging radius 8160mm
Max. turning radius 2207mm
Dimension
  1. Transport length
 7662mm
  1. Transport arm height
 2980mm
  1. Wheelbase
 2780mm
  1. Radius of gyration platform end
 2202mm
  1. Counter weight ground clearance
 910mm
  1. Track gauge
 1985mm
  1. Total width of undercarriage
 2510mm
  1. Width of upper structure
 2510mm
  1. Width of track shoe
 500mm
  1. Ground clearance
 430mm
  1. Total length of travel mechanism
 3750mm
  1. Cabin height
 845mm

CONFIGURATION

Main configuration
Engine Cummins
Main pump Kawasaki
Control valve Kawasaki or Parker (Optional)
Travel motor Sunjin (Korea)
Swing motor Sunjin (Korea)
