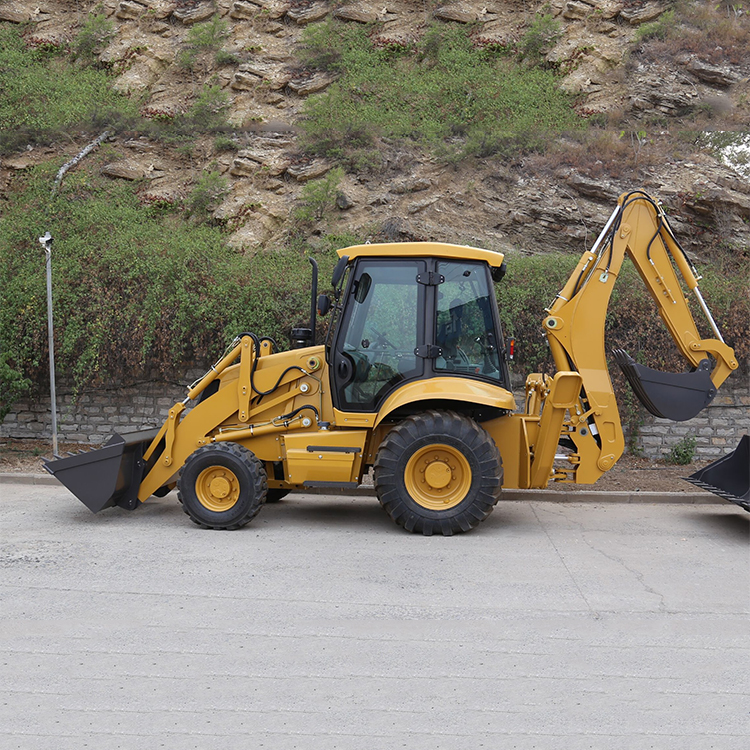

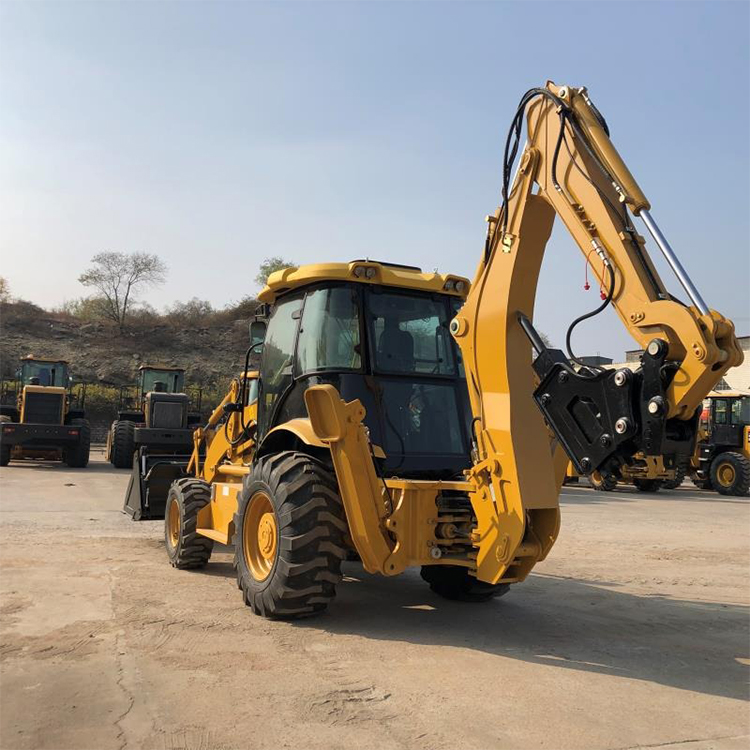

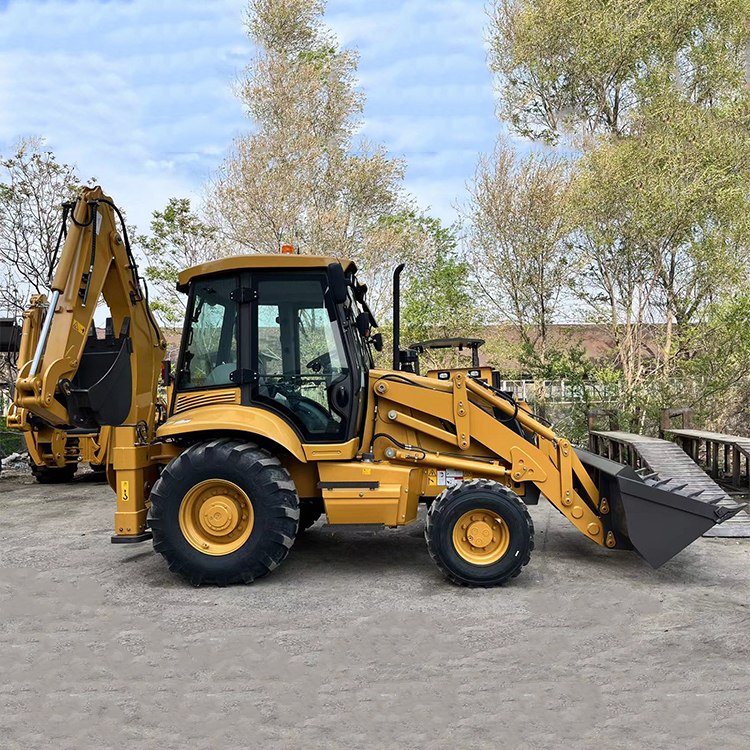

ZL-388T Backhoe Loader

Backhoe Loader is a three in one equipment that integrates tractors, loaders, and excavators. Its main functions are excavation and loading, and quick-change devices can also be installed. By replacing different accessories, it can achieve different functions such as crushing, drilling, snow removal, cleaning, etc. in addition to excavation and loading, and meet the needs of various working environments.

Chat [email protected] Inquiry

Feature

  1. Equipped with Italy Carraro driving axle, improved the safety performance of the entire machine and reduced equipment maintenance and upkeep costs.
  2. Compact structure, flexible and convenient, energy-saving and efficient.

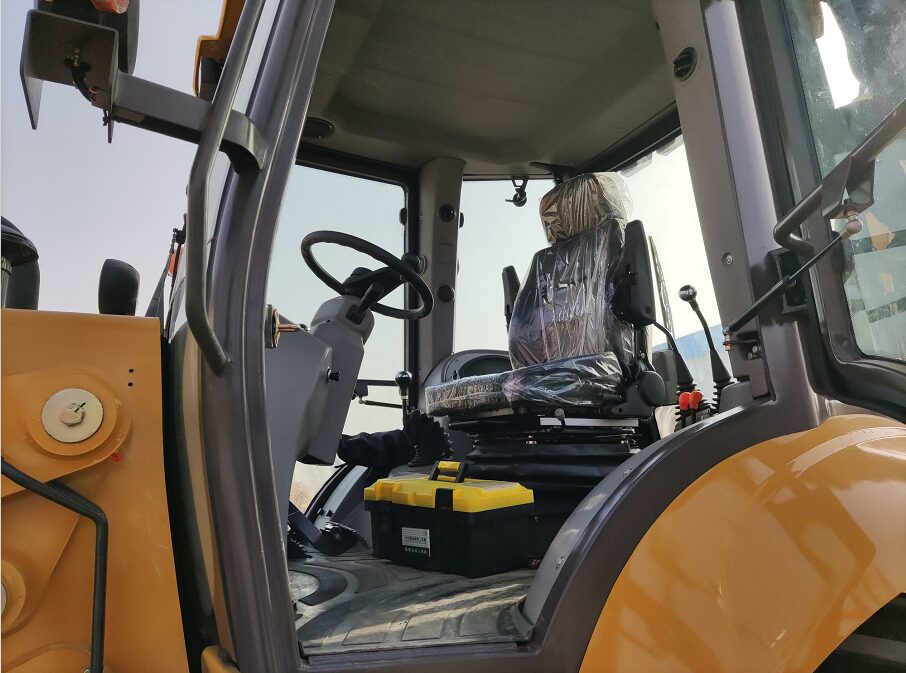

  3. Simple and convenient operation mode, equipped with a wide view cab. The control lever is designed according to ergonomics, and the handle is centralized for easy operation by construction personnel
  4. Equipped with a high horsepower engine, it provides strong power output, effectively improving the efficiency of the construction operation of the equipment. While maintaining the construction speed, it can save fuel consumption costs.
  5. Hydraulic system makes the operation of the entire machine smoother.

Appliction

Backhoe loaders are versatile machines commonly used in a variety of applications across different industries. Some typical scenarios where backhoe loaders are utilized include:

Construction Sites: Backhoe loaders are extensively used in construction projects for tasks such as excavation, trenching, digging foundations, backfilling, and site grading. They can handle a wide range of materials, including soil, gravel, sand, and rocks.

Road Construction and Maintenance: Backhoe loaders play a crucial role in road construction and maintenance activities. They are used for digging trenches for utilities, laying pipes, clearing debris, loading and unloading materials, and repairing road surfaces.

Landscaping and Land Clearing: Landscapers and land clearing contractors use backhoe loaders for tasks such as land grading, clearing brush and vegetation, shaping terrain, and digging ponds or ditches. They are also employed in tree planting and removal operations.

Agriculture and Farming: Backhoe loaders find applications in agriculture for tasks such as digging irrigation ditches, clearing land for planting crops, loading and unloading materials, and handling farm implements. They are especially useful on small to medium-sized farms.

Demolition Projects: During demolition activities, backhoe loaders are utilized for breaking up concrete, removing debris, and clearing demolition sites. Their versatility and ability to maneuver in confined spaces make them valuable assets in demolition projects.

Snow Removal: In regions with heavy snowfall, backhoe loaders equipped with snowplow attachments or front-end loaders are employed for clearing snow from roads, parking lots, sidewalks, and other surfaces. They can also be used for stacking snow in designated areas.

Overall, backhoe loaders are indispensable machines in a wide range of industries and applications due to their versatility, maneuverability, and ability to perform multiple tasks with one machine.

Technical Parameters

Dimension Overall operating weight 8000kg
Dimension L*W*H 6230×2365×3752mm
Wheel base 2280mm
Min. Ground Clearance 300mm
Bucket Capacity 1.0m3
Breakout Force 60KN
Loading Lifting Capacity 2500KG
Bucket Dumping Height 2650mm
Bucket Dumping Distance 1025mm
Digging Depth 52mm
Backhoe Capacity 0.3 m3
Max. Digging Depth 4082mm
Swing Angle of Excavator Grab 190o
Max. Pulling Force 65KN
Engine Model WEICHAI WP4G95E221
Type In Line Direct injection Four-Stroke and Injection
Cylinder-Inside Diameter*Stroke 4-105×130
Rated Power 70KW
Rated Speed 2200r/min
Min. Fuel Consumption ≤230g/km.h
Max. Torque 380 N.m / 1400-1600 rpm
Steering system Model of Steering Device BZZ5-250
Steering Angle ±36 o
Min. turning radius 6581mm
Pressure of the system 12Mpa
Axle Main Transmission Type Double Reduction
Final Reducer Single Stage Final Reducer
Rated dynamic / static load of front axle 9 T / 22.5T
Rated dynamic / static load of rear axle 7.5 / 18.75 T
Gear box Model TLB1-4WD
Type Fixed Shaft Power Transmission
Gears Two forward, Two reverse gears
Max. Speed 35Km/h
Tyre Model 14-17.5/19.5L-24
Pressure of Front wheel 0.3Mpa
Pressure of Back Wheel 0.223Mpa
Brake system Service Brake Wet, Internal, Self-regulation, Self-balance
Emergency Brake Hydraulic terminating brake
Hydraulic system Digging Power of Excavator Grab 60KN
Digging Power of Dipper 31KN
Bucket Lifting Time 6.8S
Bucket Lowering Time 3.1S
Bucket Discharge Time 2.0S
