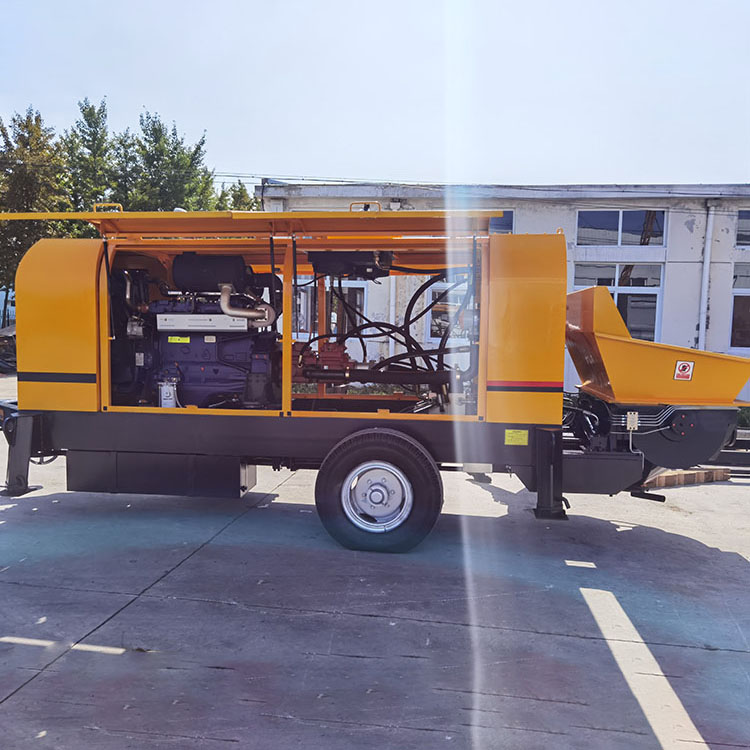

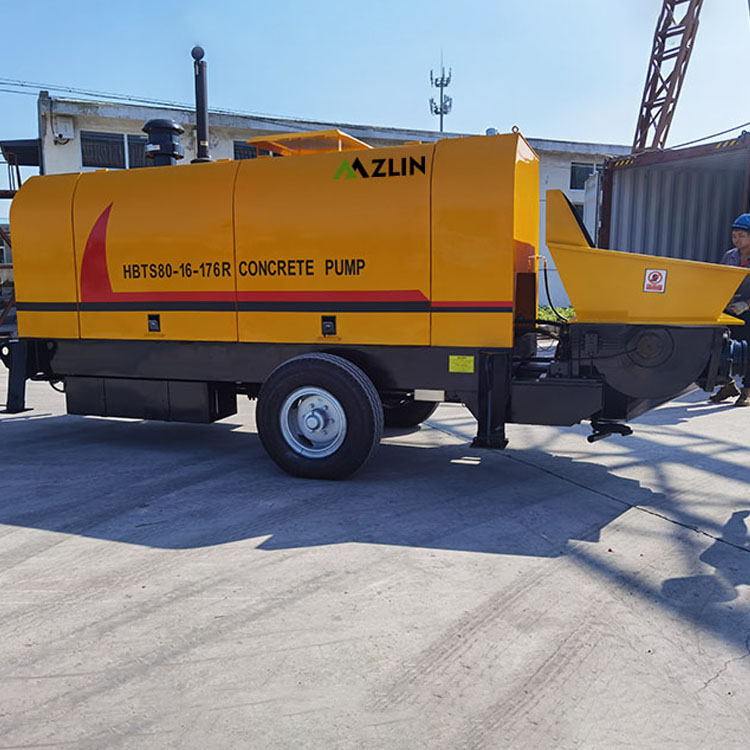

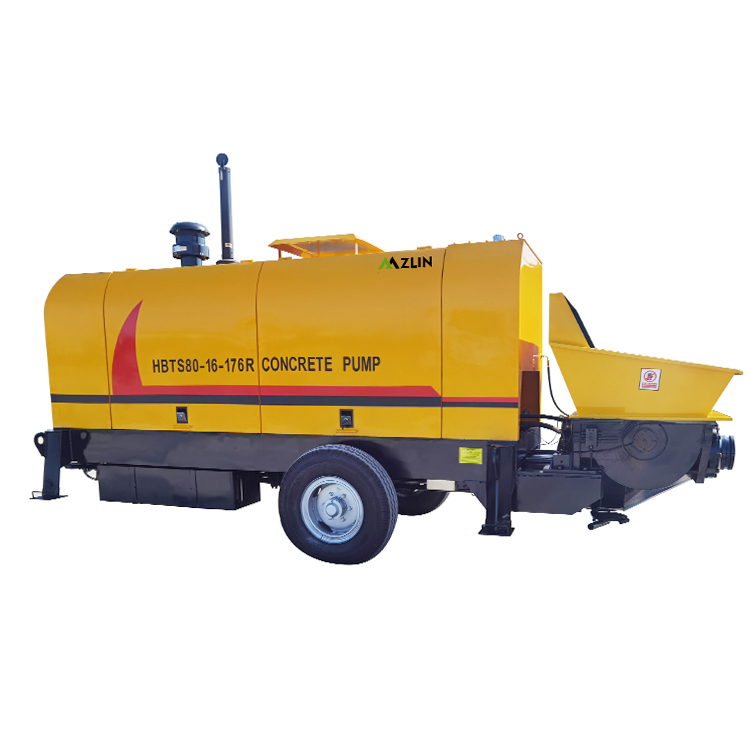

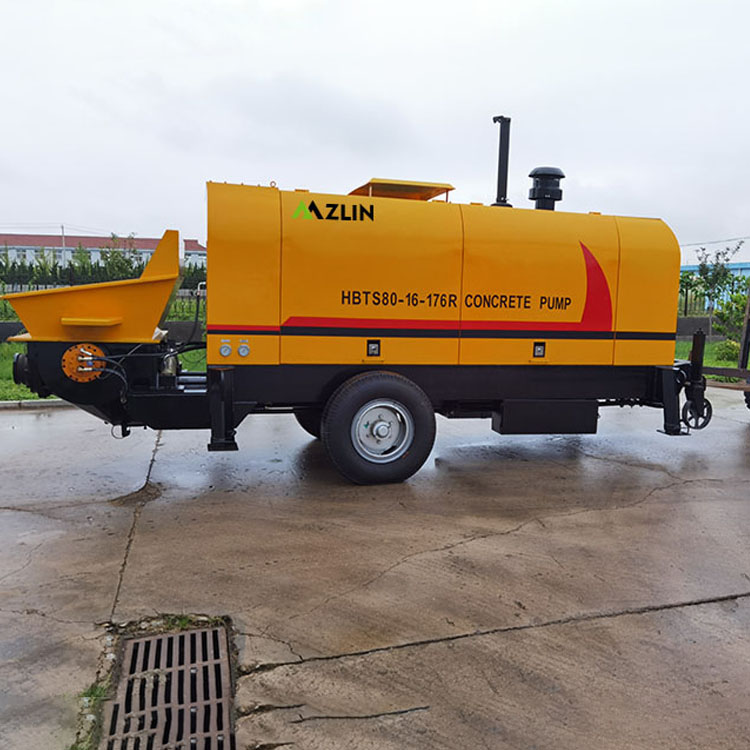

HBTS80-16-176RS Diesel Trailer Pump is characterized by high efficiency and energy saving, which can reduce energy consumption and improve working efficiency, meanwhile, it has large theoretical conveying volume and discharging pressure, which is suitable for long-distance and high-level concrete conveying.
1. Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability, high reliability and high resist contaminative capability.
2. Hydraulic system has safe relief protection, at the same time, when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
3. Cone sealing of all pipes make the pipe joints seal reliably.
4. Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
1. It is suitable for all kinds of construction projects, road projects, water conservancy projects and other occasions that require a large amount of concrete transportation.
2. It plays a key role in large-scale engineering projects, such as high-rise buildings, cement plants, hydropower stations, etc.
| Whole performance of machine | Max. theo. concrete output
|
m3/h | 84/45 |
| Max. concrete pumping pressure (H. /L.) | MPa | 16/7.6 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter × stroke | mm | Ф200×1800 | |
| Hopper capacity × feeding height | L × mm | 800×1400 | |
| Outlet diameter | mm | Ф180 | |
| Power system | Diesel engine model | Weichai-Deutz | |
| Electrical engineering power | kW | 176 | |
| Rotate speed | r/min | 2200 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 370 | |
| The biggest transportation is away from vertically (/Level) | m | 200/1200 | |
| Other parameters | Max. aggregate diameter | mm | Scree:50 40 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions：length × width × height | mm | 5800×2000×1750 | |
| Total weight | kg | 8500 |
CONFIGURATION
| Assembly configuration | Diesel engine model | Weichai-Deutz |
| Circuit type | Double hydraulic open loops with two pumps | |
| Main hydraulic pump | Kawasaki K3V112DT | |
| Main valve and control valve block | Beijing huade | |
| Agitator motor | Ningbo | |
| Pumping cylinder | Φ140/90×1800 | |
| Concrete cylinder | Φ200×1800 | |
| Spectacles wear plate and cutting ring | Wear | |
| Lubrication system | Manual lubrication pump/double-distributor | |
| Mixing auto-reverse | Have | |
| Remote control | Wireless | |
| Radiator | Air-cooled | |
| High-low pressure switch | Have | |
| Hydraulic system configuration | Main hydraulic pump | Kawasaki 112DT |
| Gear pump | HEFEI | |
| Suction filter | WENZHOU | |
| Return filter | WENZHOU | |
| Return filter element | WENZHOU | |
| Pressure relief valve | HUADE | |
| Electro-hydraulic reversal valve | HUADE | |
| Accumulator | NINGBO | |
| Hydraulic motor | NINGBO | |
| Radiator | XINXIANG | |
| Check valve | HUADE | |
| Electromagnetism reversal valve | HUADE | |
| Sandwich plate relief valve | HUADE | |
| Electric system Configuration | QF1.3 Small circuit breaker | Made in China |
| QF2 Small circuit breaker | Made in China | |
| KA1.2 Relay | Made in China | |
| KA3.4 Auxiliary relay | Made in China | |
| SQ3-SQ4 Proximity switch | Made in China | |
| SB2.3 Pumping button | Made in China | |
| SA2.3.4.5.10 Switch | Made in China | |
| SA6.7.8.9 Remote switch | Made in China | |
| SQ1-2 Proximity switch | ||
| YV1-4 Electromagnetism iron | ||
| V1-4 Diode | CHINA | |
| PLC Programme controller | OMRON | |
| XP Pin | CHINA | |
| XS Socket | CHINA | |
| XT Connecting terminals | CHINA | |
| GB Accumulator | CHINA | |
| H Lamp | CHINA |
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
