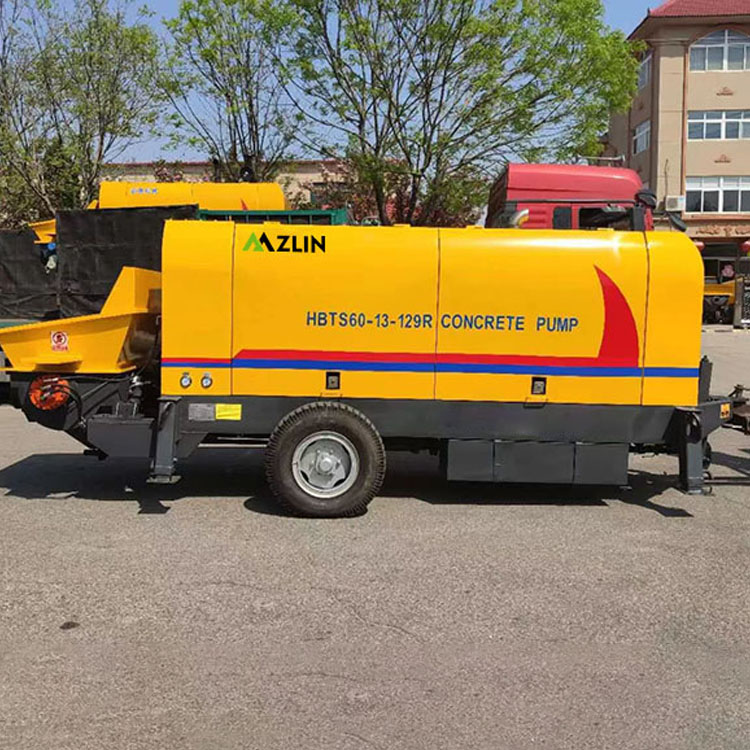

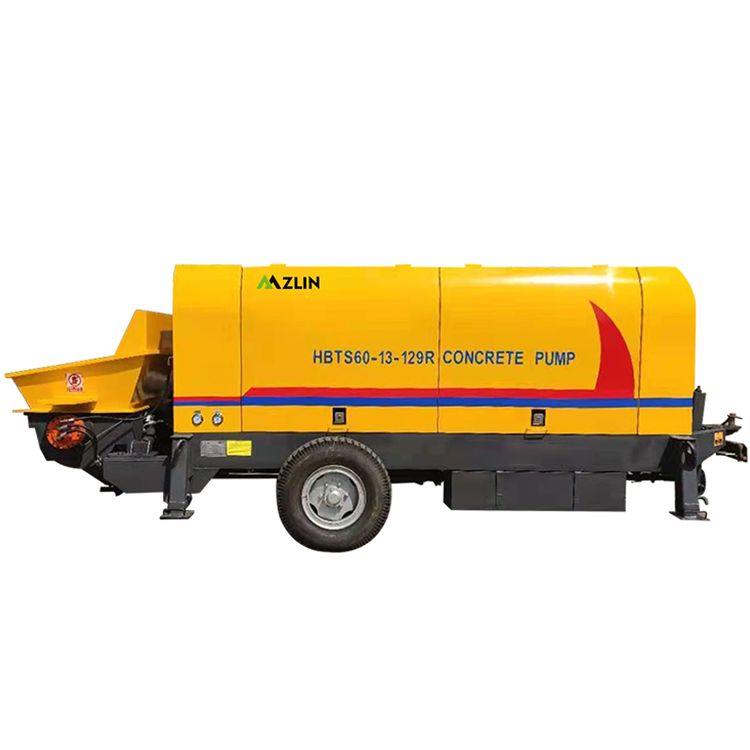

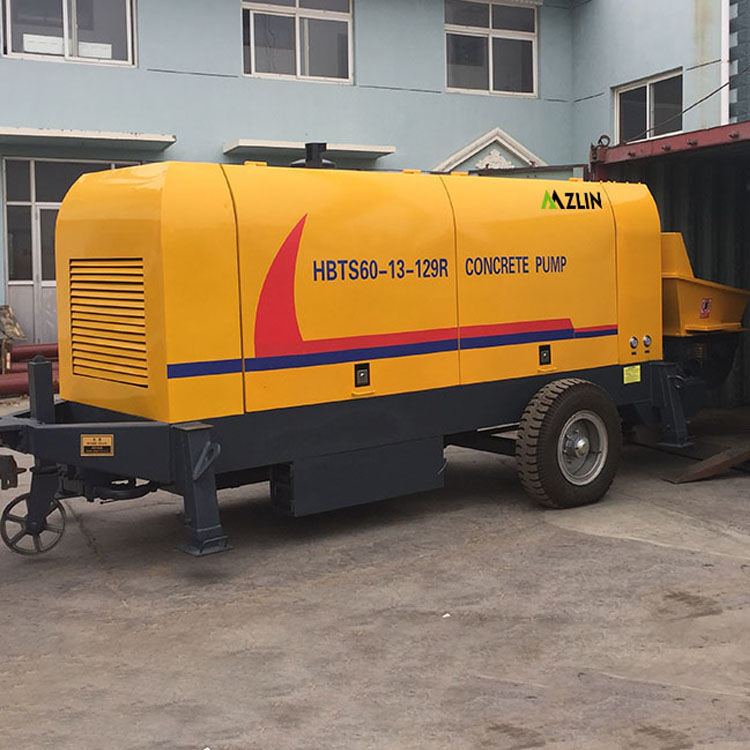

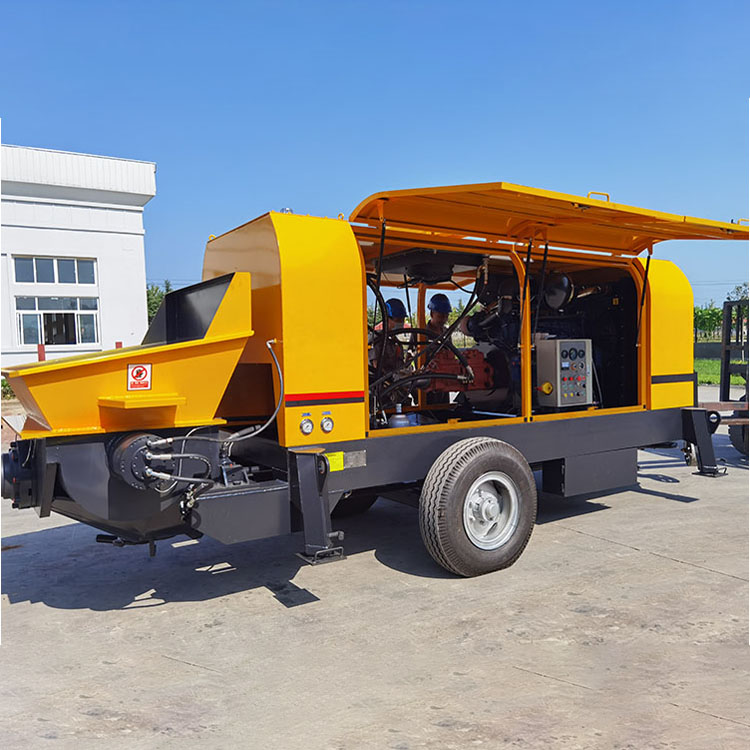

HBTS60-13-129RS Diesel Trailer Pump adopts diesel engine as the power source, which is suitable for engineering sites without electricity supply.
1. The oil pump adopts a well-known brand of variable displacement piston pump, with high rated pressure; The valve group adopts Beijing Huade, with stable and reliable quality.
2. The entire series adopts an electronic hydraulic system, which is concise and easy to maintain.
3. The dual cooling system of air cooling and water cooling ensures that the equipment can work normally even in extremely hot weather (temperatures above 40 ℃).
4. The centralized lubrication system adopts a multi-point direct oil supply method, with high oil supply pressure, and high efficiency.
5. The unique directional buffering design effectively solves the pressure impact at the moment of directional change, making the directional change extremely smooth.
It is suitable for all kinds of construction projects, road projects, water conservancy projects and other occasions that require a large amount of concrete transportation.
It plays a key role in large-scale engineering projects, such as high-rise buildings, cement plants, hydropower stations, etc.
| Whole performance of machine | Max. theo. concrete output | m3/h | 84/45 |
| Max. concrete pumping pressure (H. /L.) | MPa | 13/7 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter × stroke | mm | Ф200×1650 | |
| Hopper capacity × feeding height | L× mm | 800×1400 | |
| Outlet diameter | mm | Ф180 | |
| Power system | Diesel engine model | Weichai-Deutz | |
| Electrical engineering power | kW | 129 | |
| Rotate speed | r/min | 2200 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 370 | |
| The biggest transportation is away from vertically (/Level) | m | 180/1000 | |
| Other parameters | Max. aggregate diameter | mm | Scree:50 40 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions：length × width × height | mm | 5800×2000×1750 | |
| Total weight | kg | 4500 |
CONFIGURATION
| Assemble Configuration | Diesel engine model | Weichai-Deutz |
| Circuit type | Double hydraulic open loops with two pumps | |
| Main hydraulic pump | Kawasaki K3V112x2 | |
| Main valve and control valve block | Beijing huade | |
| Agitator motor | Ningbo | |
| Pumping cylinder | Φ125/80×1650 | |
| Concrete cylinder | Φ200×1650 | |
| Spectacles wear plate and cutting ring | Wear | |
| Lubrication system | Manual lubrication pump/double-distributor | |
| Mixing auto-reverse | Have | |
| Remote control | Wireless | |
| Radiator | Air-cooled | |
| High-low pressure switch | Have | |
| Hydraulic System Configuration | Main hydraulic pump | Kawasaki 112×2 |
| Gear pump | HEFEI | |
| Suction filter | WENZHOU | |
| Return filter | WENZHOU | |
| Return filter element | WENZHOU | |
| Pressure relief valve | HUADE | |
| Electro-hydraulic reversal valve | HUADE | |
| Accumulator | NINGBO | |
| Hydraulic motor | NINGBO | |
| Radiator | XINXIANG | |
| Check valve | HUADE | |
| Electromagnetism reversal valve | HUADE | |
| Sandwich plate relief valve | HUADE | |
| Electric system configuration | QF1.3 Small circuit breaker | Made in China |
| QF2 Small circuit breaker | Made in China | |
| KA1.2 Relay | Made in China | |
| KA3.4 Auxiliary relay | Made in China | |
| SQ3-SQ4 Proximity switch | Made in China | |
| SB2.3 Pumping button | Made in China | |
| SA2.3.4.5.10 Switch | Made in China | |
| SA6.7.8.9 Remote switch | Made in China | |
| SQ1-2 Proximity switch |
