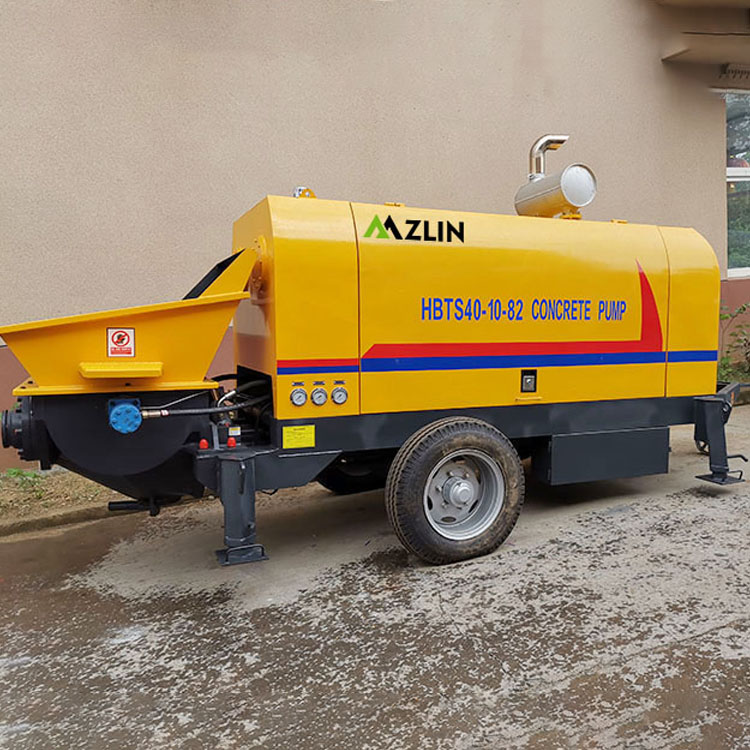

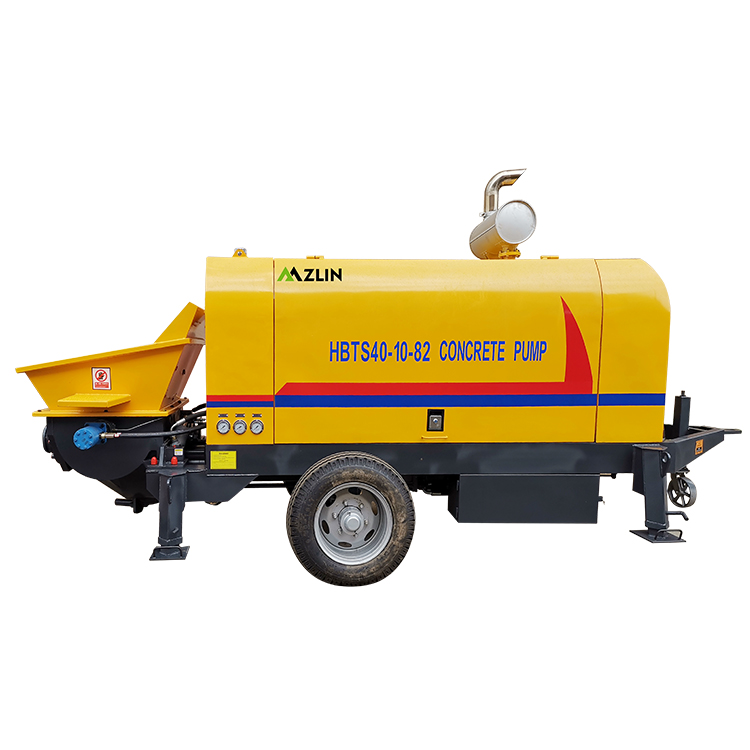

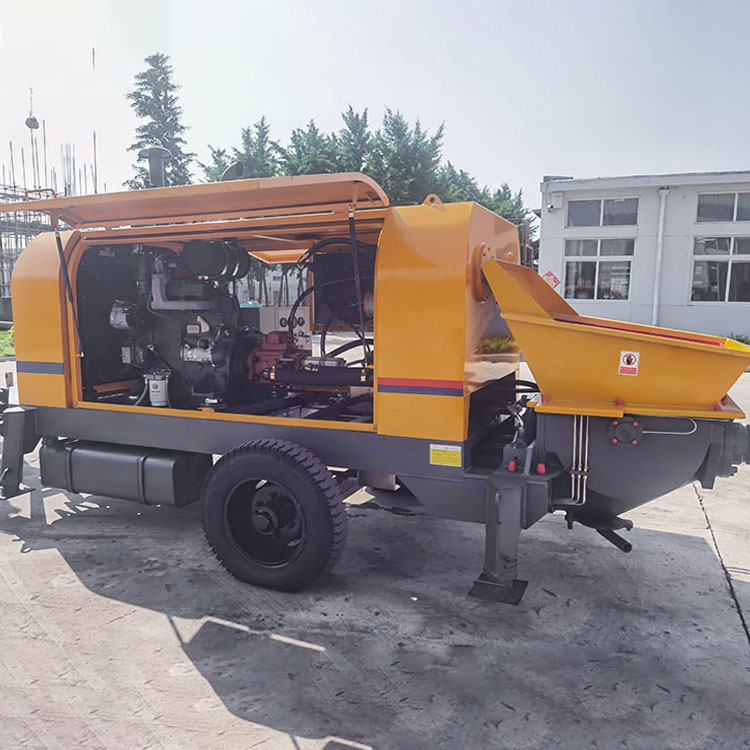

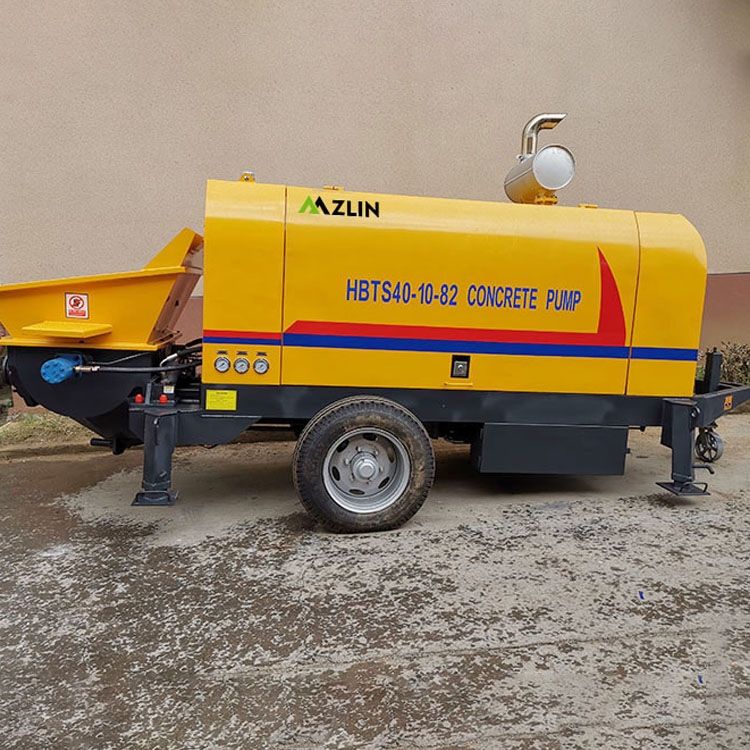

HBT40-10-82RS is a common diesel trailer pump with high efficiency and energy saving features, which can reduce the project cost and energy consumption.
1. The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
2. The oil pump adopts a well-known brand of variable displacement piston pump, with high rated pressure; The valve group adopts Beijing Huade, with stable and reliable quality.
3. The wire remote equipment is convenient for operation far away.
4. Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability, high reliability and high resist contaminative capability.
5. The hydraulic system adopts a mature and simple electronic control system, with low failure rate and convenient maintenance
1. It is suitable for all kinds of concrete structure projects such as city buildings, bridges, water conservancy projects and so on.
2. It can also be used for concrete conveying in tunnel, mine, wharf and other special engineering environments.
| Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 40/26 |
| Max. concrete pumping pressure (H. /L.) | MPa | 10/7.6 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter × stroke | mm | Ф1800×1300 | |
| Hopper capacity × feeding height | L×mm | 400×1100 | |
| Outlet diameter | mm | Ф150 | |
| Power system | Diesel engine model | WP4G110E220 | |
| Electrical engineering power | kW | 82 | |
| Rotate speed | r/min | 2100 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 31.5 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 370 | |
| The biggest transportation is away from vertically (/Level) | m | 120/500 | |
| Other parameters | Max. aggregate diameter | mm | Scree:30 40 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions：length × width × height | mm | 4800×1850×2200 | |
| Total weight | kg | 4800 |
CONFIGURATION
| Assembly Configuration | Diesel engine model | 82kw |
| Circuit type | Double hydraulic open loops with two pumps | |
| Main hydraulic pump | Kawasaki K3V112 | |
| Main valve and control valve block | Beijing huade | |
| Agitator motor | Ningbo | |
| Pumping cylinder | Φ100/70×1300 | |
| Concrete cylinder
|
Φ180×1300 | |
| Spectacles wear plate and cutting ring | Wear
|
|
| Lubrication system | Manual lubrication pump/double-distributor
|
|
| Mixing auto-reverse | Have | |
| Remote control | Wireless | |
| Radiator | Air-cooled | |
| High-low pressure switch | Have | |
| Hydraulic System Configuration | Main hydraulic pump | Kawasaki K3V112 |
| Gear pump | HEFEI | |
| Suction filter | WENZHOU | |
| Return filter | WENZHOU | |
| Return filter element | WENZHOU | |
| Pressure relief valve | HUADE | |
| Electro-hydraulic reversal valve | HUADE | |
| Accumulator | NINGBO | |
| Hydraulic motor | NINGBO | |
| Radiator | XINXIANG | |
| Check valve | HUADE | |
| Electromagnetism reversal valve | HUADE | |
| Sandwich plate relief valve | HUADE | |
| Electrical system configuration | QF1.3 Small circuit breaker | Made in China |
| QF2 Small circuit breaker | Made in China | |
| KA1.2 Relay | Made in China | |
| KA3.4 Auxiliary relay | Made in China | |
| SQ3-SQ4 Proximity switch | Made in China | |
| SB2.3 Pumping button | Made in China | |
| SA2.3.4.5.10 Switch | Made in China | |
| SA6.7.8.9 Remote switch | Made in China | |
| SQ1-2 Proximity switch | ||
| YV1-4 Electromagnetism iron | ||
| V14 Diode | CHINA | |
| PLC Programmed controller | OMRON | |
| XP Pin | CHINA | |
| XS Socket | CHINA | |
| XT Connecting terminals | CHINA | |
| GB Accumulator | CHINA | |
| H Lamp | CHINA |
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
