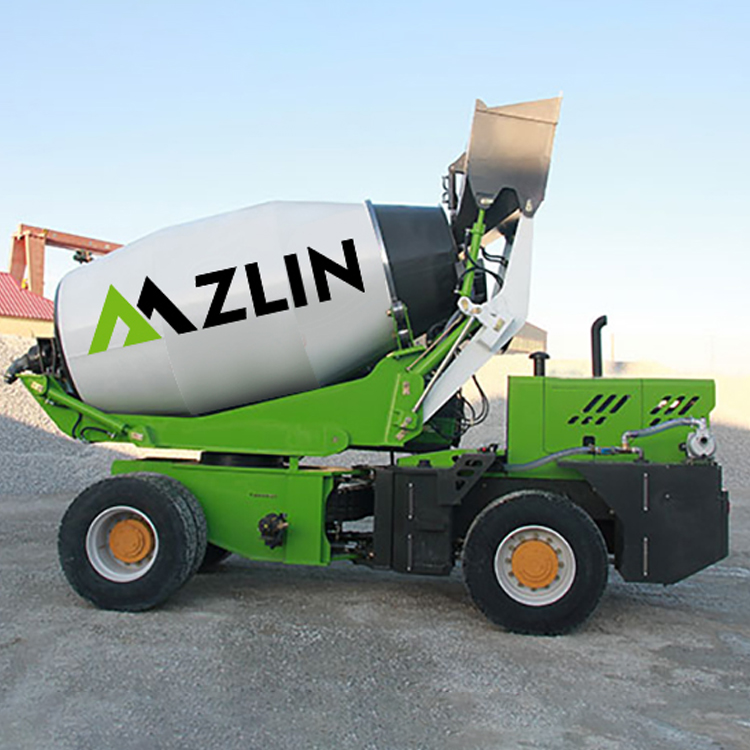

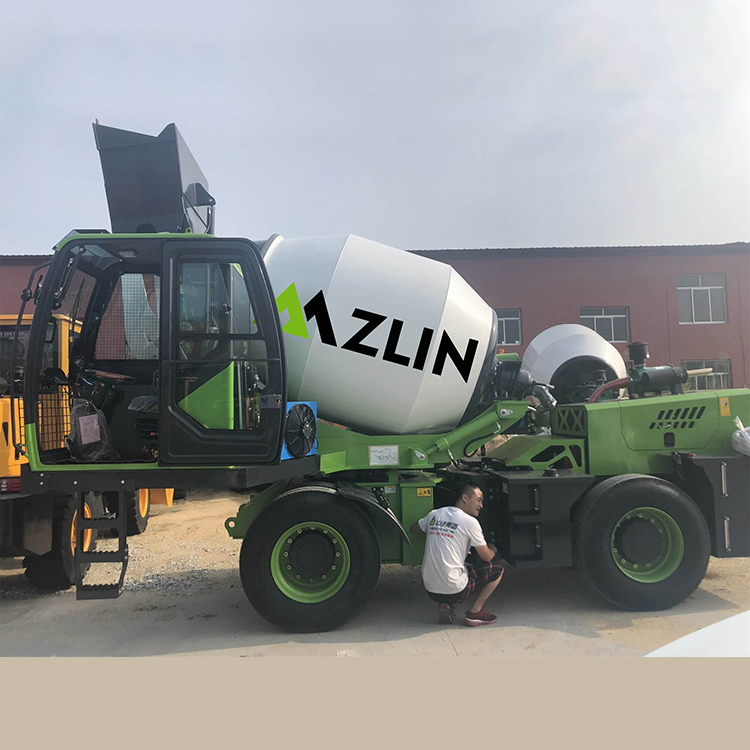

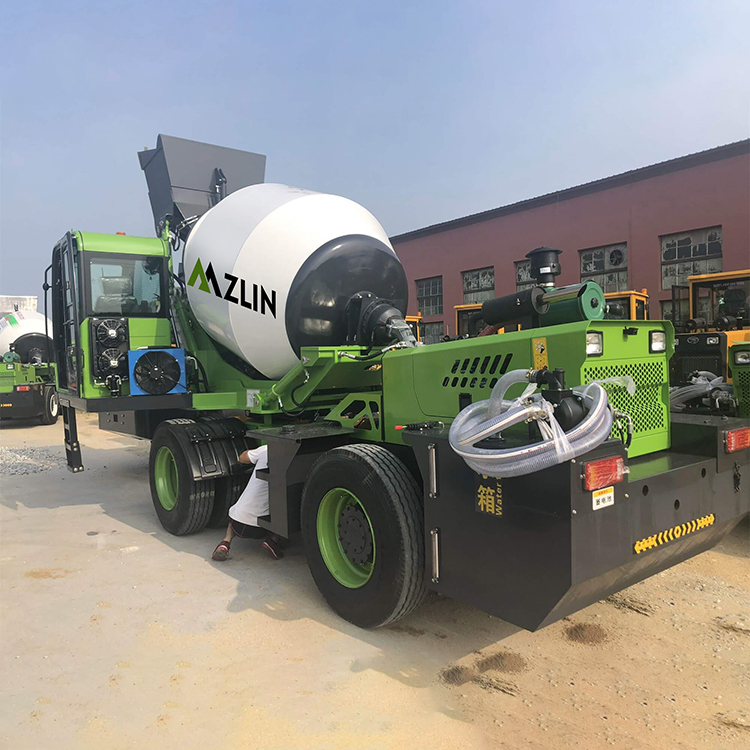

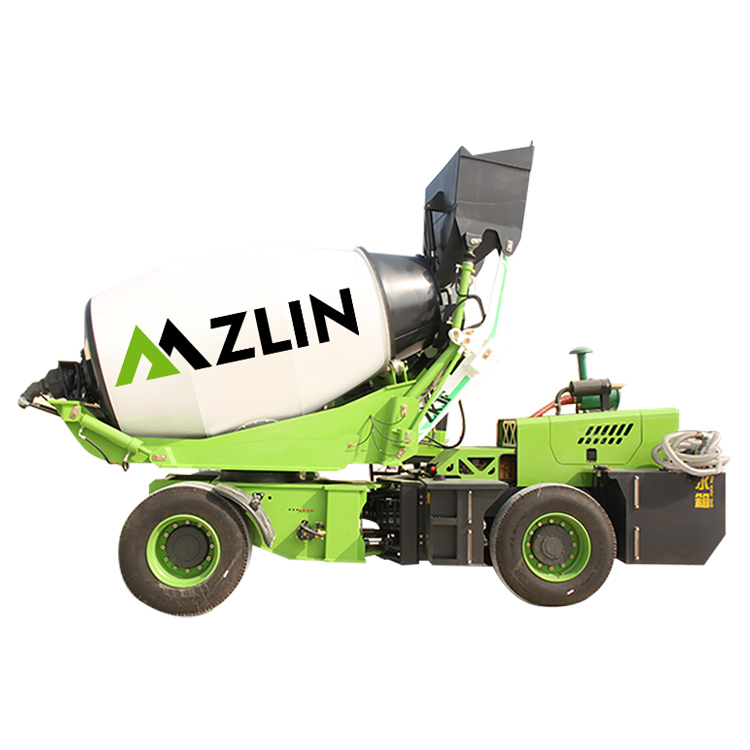

4cbm self-loading Concrete Mixer

The 4 cubic meter self-loading concrete mixer truck is a powerful and large-capacity concrete mixing equipment suitable for construction projects that require large amounts of concrete

Chat [email protected] Inquiry

Feature

1. The production of concrete on the construction site can meet the on-site concrete demand and improve construction efficiency.
2. The freshness and quality of concrete are guaranteed, which improves the construction quality and durability of the project.
3. Avoiding quality damage during concrete transportation and handling, reducing construction costs.
4. The mixing efficiency of the self-loading concrete mixer truck is high, and the concrete is uniform and delicate.
5. The operation is simple, convenient, and safe, reducing manual operation and labor intensity.

Appliction

1. Large-Scale Construction Projects: Ideal for major construction projects such as high-rise buildings, large residential complexes, industrial facilities, and infrastructure developments that demand a substantial volume of concrete.

2. Road Construction: Well-suited for road and highway construction projects, including bridges, tunnels, overpasses, and pavements, where a continuous and efficient supply of concrete is essential for timely completion.

3. Commercial and Industrial Construction: Suitable for use in commercial and industrial construction sites like shopping malls, warehouses, factories, and manufacturing plants where a reliable on-site concrete mixing solution is required.

4. Urban Development: Effective in urban development projects such as city renovations, urban infrastructure upgrades, and public infrastructure construction where space constraints or limited access make traditional concrete delivery challenging.

5. Infrastructure Projects: Valuable for infrastructure developments like dams, ports, airports, water treatment plants, and power plants that involve significant concrete work and require a reliable and efficient concrete mixing solution.

Technical Parameters









Vehicle Parameters

1 Model 4m³(270°)
  2 Dimension 8450*3000*4500mm
  3 Wheelbase 3300mm
  4 Curb weight 9700kg
  5 Drive form Torque converter
  6 Max. speed 35km/h
  7 Max. Grade ability 40°
  8 Min. turning radius 5300mm
  9 Min. ground clearance 380mm
Engine 10 Model Yuchai 4108 pressurize
  11 Rated power 91kw
Gear box 12 Model ZL-315 Power shift gear box
  13 Gear position 4 forward 4 backward
General parameters 14 Equipment model JBC-40
Hydraulic system parameters 15 Reducer speed ratio HJ80-43
  16 Pump Germany Rexroth
  17 Motor Germany Rexroth
Water supply parameters 18 Water tank capacity 920L
  19 Water supply type Time relay
Maintenance refueling amount 20 Fuel oil tank 120L
  21 Hydraulic system total capacity 120L
  22 Engine oil 16L






Mixing and unloading

23 The double cone drum has a double spiral rod and a convex bottom
  24 Drum geometric capacity 6000L
  25 Drum rotation speed 20r/min
  26 Concrete production 4m³/tank
