Home > Products > 3.5cbm self-loading Concrete Mixer

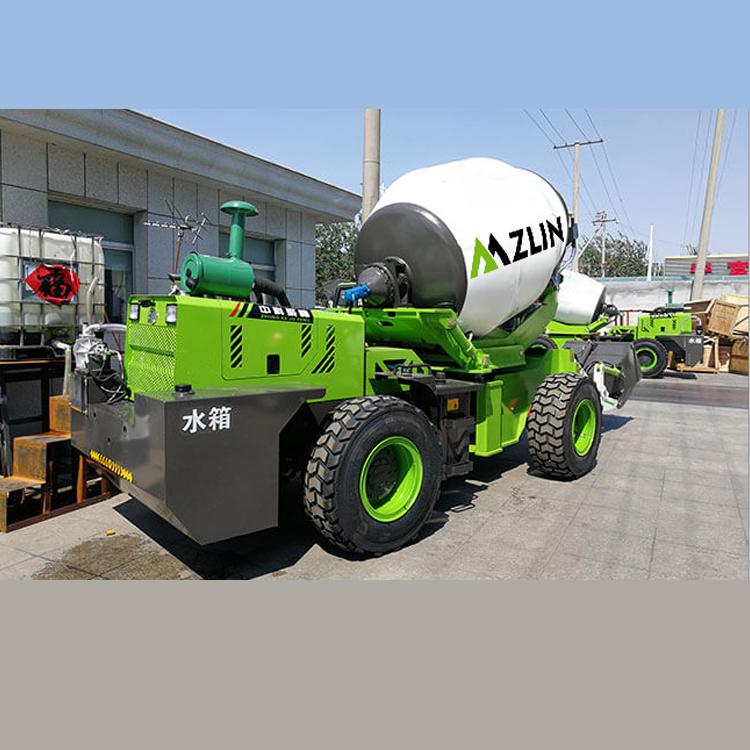

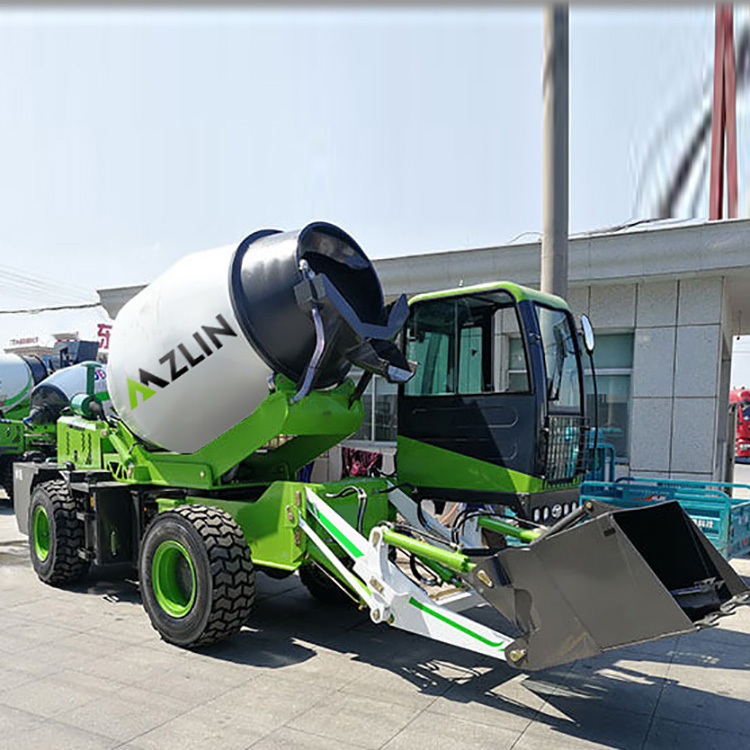

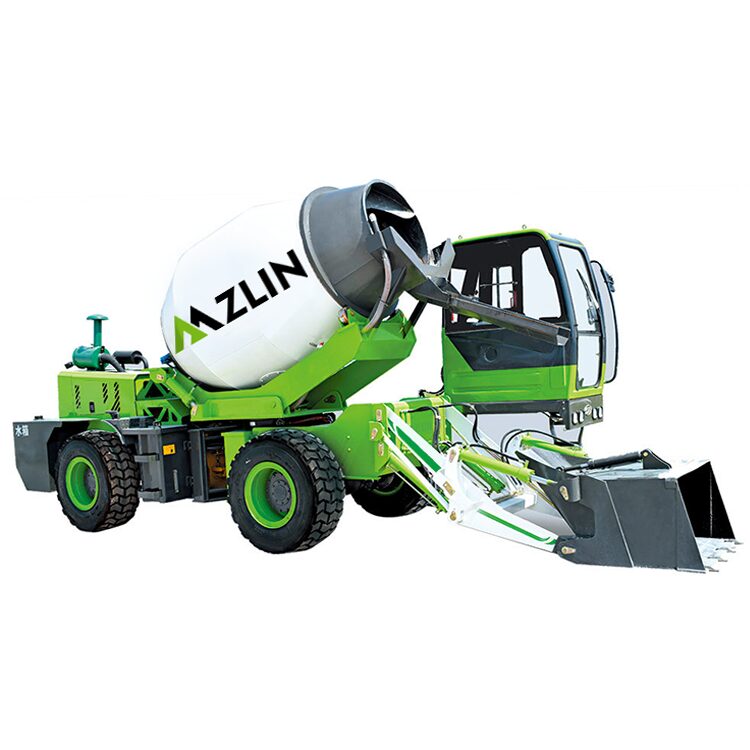

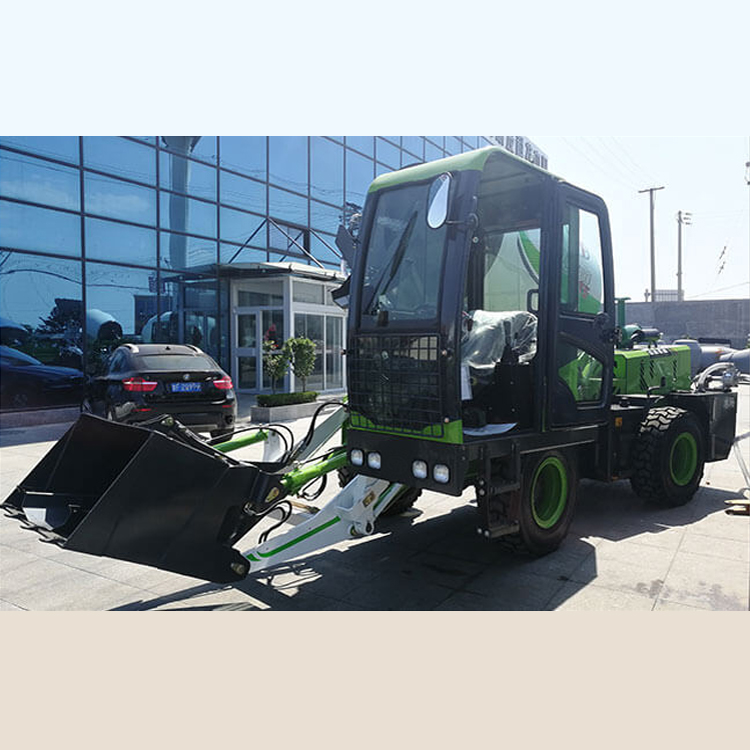

The 3.5cbm self-loading concrete mixer is a robust and high-capacity concrete mixing equipment designed for demanding construction projects that require a significant volume of concrete.

Chat [email protected]

Feature Appliction Technical Parameters

Feature

1. High automation program: automatic loading, mixing, unloading, and transportation.

2. The widespread application of self-loading mixer trucks not only saves construction time, but also effectively reduces labor costs.

3. The mixing efficiency of the self-loading concrete mixer truck is high, and the concrete is uniform and delicate.

4. Simple operation, convenient, and safe, reducing manual operation and labor intensity.

Appliction

Large-Scale Construction Projects: Ideal for major construction projects such as high-rise buildings, large residential complexes, industrial facilities, and infrastructure developments that demand a substantial volume of concrete.

Road Construction: Well-suited for road and highway construction projects, including bridges, tunnels, overpasses, and pavements, where a continuous and efficient supply of concrete is essential for timely completion.

Commercial and Industrial Construction: Suitable for use in commercial and industrial construction sites like shopping malls, warehouses, factories, and manufacturing plants where a reliable on-site concrete mixing solution is required.

Urban Development: Effective in urban development projects such as city renovations, urban infrastructure upgrades, and public infrastructure construction where space constraints or limited access make traditional concrete delivery challenging.

Infrastructure Projects: Valuable for infrastructure developments like dams, ports, airports, water treatment plants, and power plants that involve significant concrete work and require a reliable and efficient concrete mixing solution.

Technical Parameters

Vehicle Parameters	1	Model	3.5m³（270°）
	2	Dimension	783026804170mm
	3	Wheelbase	2900mm
	4	Curb weight	7800kg
	5	Drive form	Torque converter
	6	Max. speed	30km/h
	7	Max. Grade ability	30°
	8	Min. turning radius	5300mm
	9	Min. ground clearance	380mm
Engine	10	Model	Yuchai 4105 pressurize
Engine	11	Rated power	85kw
Gear box	12	Model	ZL-280 Power shift gear box
Gear box	13	Gear position	4 forward 4 backward
General parameters	14	Equipment model	JBC-35A
Hydraulic system parameters	15	Reducer speed ratio	HJ80-43
	16	Pump	CBGQ 2040/2080
	17	Motor	BM5-160
Water supply parameters	18	Water tank capacity	620L
Water supply parameters	19	Water supply type	Time relay
Maintenance refueling amount	20	Fuel oil tank	120L
	21	Hydraulic system total capacity	120L
	22	Engine oil	16L
Mixing and unloading	23	The double cone drum has a double spiral rod and a convex bottom
	24	Drum geometric capacity	4740L
	25	Drum rotation speed	18-21r/min
	26	Concrete production	3.5m³/tank
