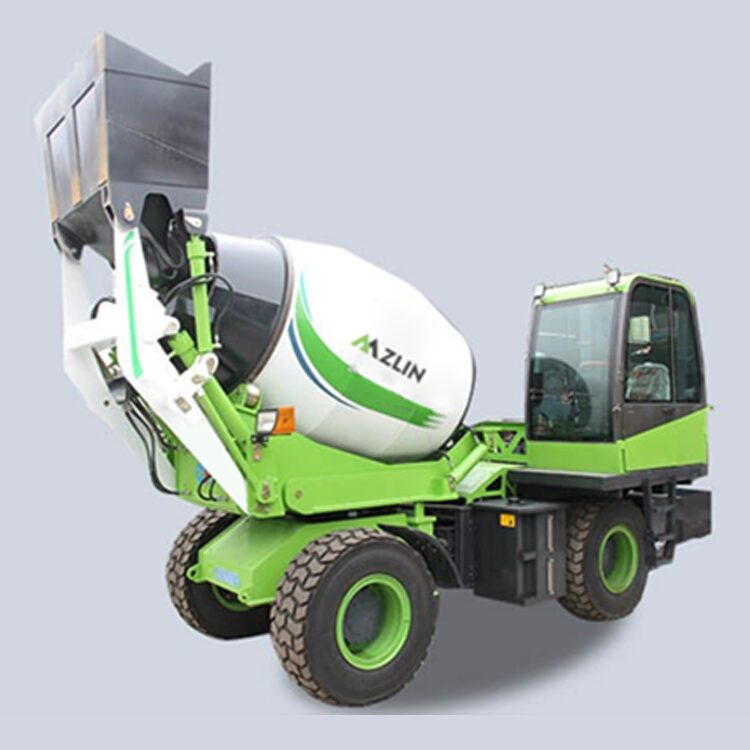

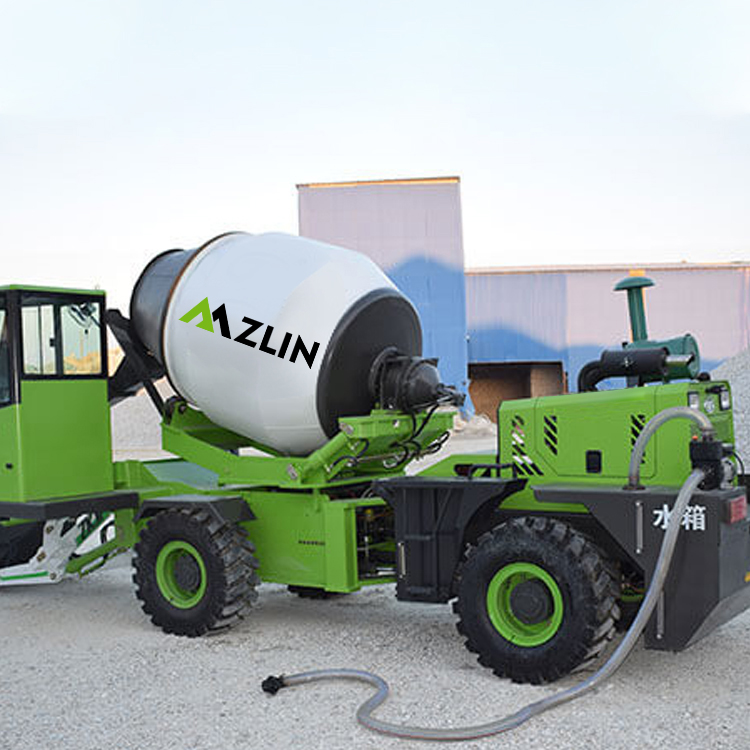

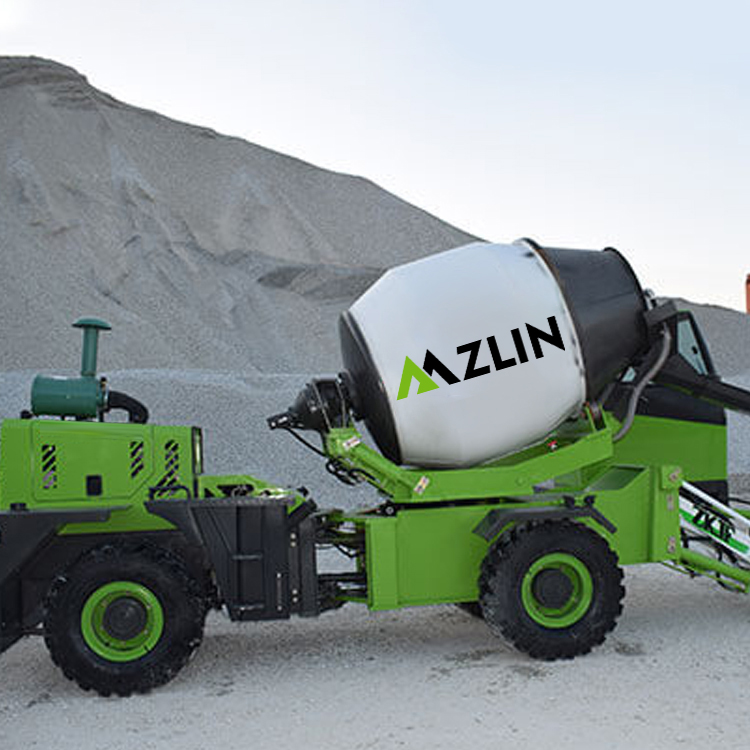

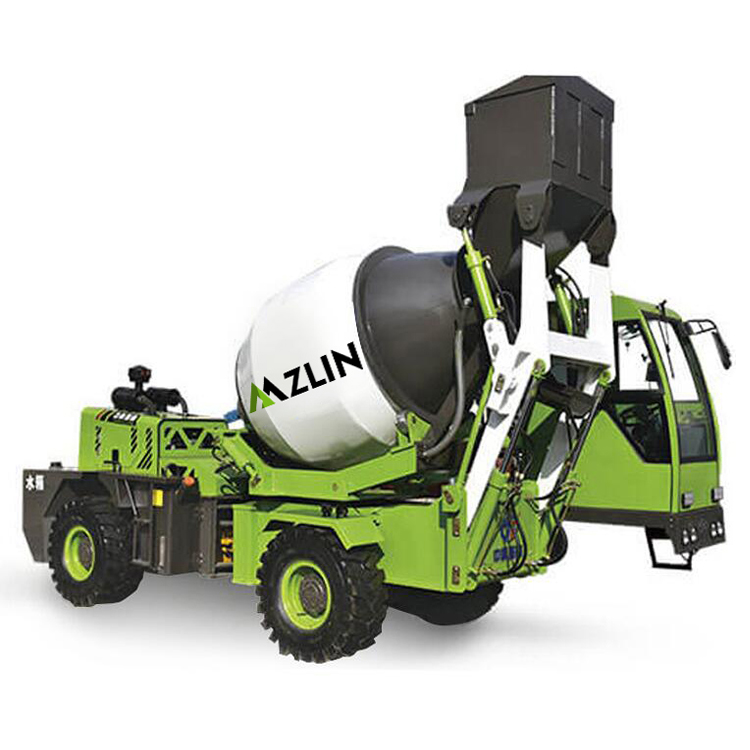

The 2cbm self-loading concrete mixer is a robust and efficient concrete mixing equipment designed for on-site concrete production. It possesses the capability to automatically load, mix, and dispense concrete, making it highly convenient for various construction applications.

Chat [email protected]

Feature Appliction Technical Parameters

Feature

1. The main hydraulic components are all imported!
2. One time mixing, mixing concrete raw materials with water evenly, completing the entire process of concrete production, reducing links, and improving production efficiency
3. The mixing process is uniform, and the concrete quality is stable and reliable.
4. The self-loading mixer truck can fully meet the requirements of the construction site within a specific area of the construction site.

Appliction

1. Large Construction Projects: Ideal for medium to large-scale construction projects such as high-rise buildings, commercial complexes, industrial facilities, and infrastructure developments that require a substantial volume of concrete.

2. Road Construction: Well-suited for road construction projects including highways, bridges, tunnels, and pavements where a continuous and efficient supply of concrete is essential.

3. Urban Development: Effective in urban development projects where space constraints or limited access make traditional concrete delivery challenging, enabling concrete production directly at the construction site.

4. Infrastructure Development: Used in infrastructure projects such as dams, ports, airports, and water treatment facilities that require consistent and high-quality concrete supply.

5. Large-Scale Landscaping: Beneficial for landscaping projects that involve extensive concrete work, such as parks, public spaces, and recreational areas.

Technical Parameters

Vehicle Parameters	1	Model	2 m³（90°）
	2	Dimension	695027203850mm
	3	Wheelbase	2520mm
	4	Curb weight	6300kg
	5	Drive form	Torque converter
	6	Max. speed	35km/h
	7	Max. Grade ability	40°
	8	Min. turning radius	5300mm
	9	Min. ground clearance	380mm
Engine	10	Model	Yuchai 4102 pressurize
Engine	11	Rated power	78kw
Gear box	12	Model	ZL-265 power shift gear box
Gear box	13	Gear position	4 forward 4 backward
General parameters	14	Equipment model	JBC-20c
Hydraulic system parameters	15	Reducer speed ratio	HJ80-43
	16	Pump	C50/32
	17	Motor	Cycloid 125
Water supply parameters	18	Water tank capacity	500L
Water supply parameters	19	Water supply type	Time relay
Maintenance refueling amount	20	Fuel oil tank	75L
	21	Hydraulic system total capacity	75L
	22	Engine oil	16L
Mixing and unloading	23	The double cone drum has a double spiral rod and a convex bottom
	24	Drum geometric capacity	3500L
	25	Drum rotation speed	18-21r/min
	26	Concrete production	2m³/tank
