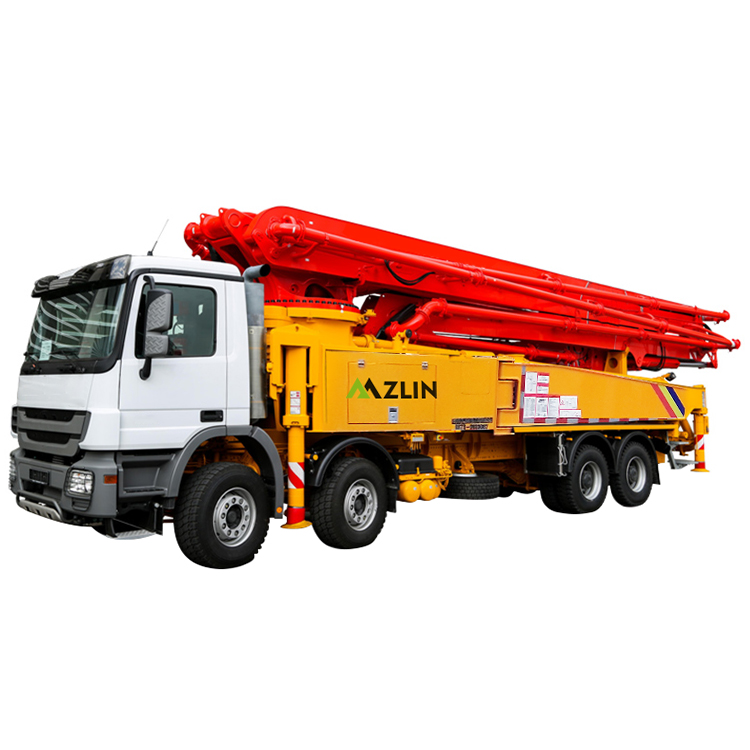

ZLBP-56-6RZ Boom Pump

The 56m boom pump truck is an advanced construction equipment designed for efficiently delivering and placing concrete in high-rise construction projects. With its impressive reach and precision, this truck-mounted concrete pump offers several advantages

Chat [email protected] Inquiry

Feature

1. Extended reach: The 56m boom allows the pump to access and deliver concrete to high-rise structures, making it ideal for tall buildings and skyscrapers.
2. Versatility: This pump truck can navigate through narrow and congested construction sites, providing flexibility in accessing hard-to-reach areas.
3. High efficiency: Equipped with advanced hydraulic systems and precision controls, the 56m boom pump ensures smooth and accurate concrete placement, minimizing material waste and labor costs.
4. Enhanced productivity: The rapid deployment and setup of the boom pump allow for continuous concrete pouring, maximizing productivity on the construction site.
5. Safety features: Built-in safety features such as boom interlocks, outrigger alarms, and emergency stop systems ensure safe operation and prevent accidents.

Appliction

High-rise construction: These trucks are essential for delivering concrete to upper floors of tall buildings and skyscrapers. The long reach of the boom allows for precise placement of concrete at elevated heights, eliminating the need for manual labor or additional equipment.

Bridge construction: When building bridges, especially those with complex designs or inaccessible locations, 56m boom pump trucks provide efficient concrete placement solutions. They can reach over barriers and obstacles to deliver concrete directly to the construction site.

Infrastructure projects: Large-scale infrastructure projects such as highways, dams, and airports often require massive concrete pours. The 56m boom pump truck can handle the high volume of concrete required for such projects and can maneuver around the site to access different areas.

Industrial facilities: Manufacturing plants, warehouses, and industrial complexes often require large concrete slabs for flooring and foundations. The 56m boom pump truck can quickly and accurately place concrete over large areas, improving construction speed and quality.

Technical Parameters

Vehicle parameters Overall dimension 13850*2550*4000mm
Weight 44000kg
Chassis brand HOWO
Drive type 8×4
Engine model WP12.400E201,400HP
Output power 324kw/1900rpm
Emission standard Euro II
Tyre 12.00R20
Wheelbase 1950+4500+1400mm
Boom & Outrigger parameters Boom vertical height 57.6m
Boom horizontal length 53.5m
Boom vertical depth 38m
Boom folding form 6RZ
First boom Length 11687mm
Corner 90°
Second boom Length 9534mm
Corner 180°
Third boom Length 9055mm
Corner 180°
Fourth boom Length 11362mm
Corner 240°
Fifth boom Length 7271mm
Corner 220°
Sixth boom Length 4653mm
Corner 110°
End conveyor hose Length 3m
Turntable rotation angle ±360°
Front outrigger deployment width 9475mm
Rear outrigger deployment width 12853mm
Longitudinal distance between front and rear outrigger 10483mm
Outrigger opening method Front outrigger X-shaped
Rear outrigger Swinging
Pumping system parameters Theoretical concrete displacement Low pressure 170m³/h
High pressure 120m³/h
Theoretical pumping pressure Low pressure 8.5MPa
High pressure 12MPa
Theoretical pumping frequency Low pressure 25
High pressure 18
Distribution valve form S valve
Inner diameter/stroke of conveying cylinder 260/2200mm
Main oil pump displacement 320ml/r
Bucket capacity 0.6m³
Feeding height 1500mm
Inner diameter of conveying pipe 125mm
Max. aggregate size 40mm
Concrete slump 160-220mm
System oil pressure 31.5MPa
Hydraulic oil capacity 700L
Hydraulic system type Open
High and low voltage switching Automatic switching
Hydraulic oil cooling method Forced air cooling
Cleaning method for concrete pipes Water wash
Lubrication method Centralization lubrication
Spare parts brand Transfer box Zhuzhou Gear
Main oil pump REXRTOH
Boom pump PUSH
Constant pressure pump PUSH
Gear pump Wany
Boom multi way valve Km Hydraulic
Boom balance valve REXRTOH
Valve group EATON
