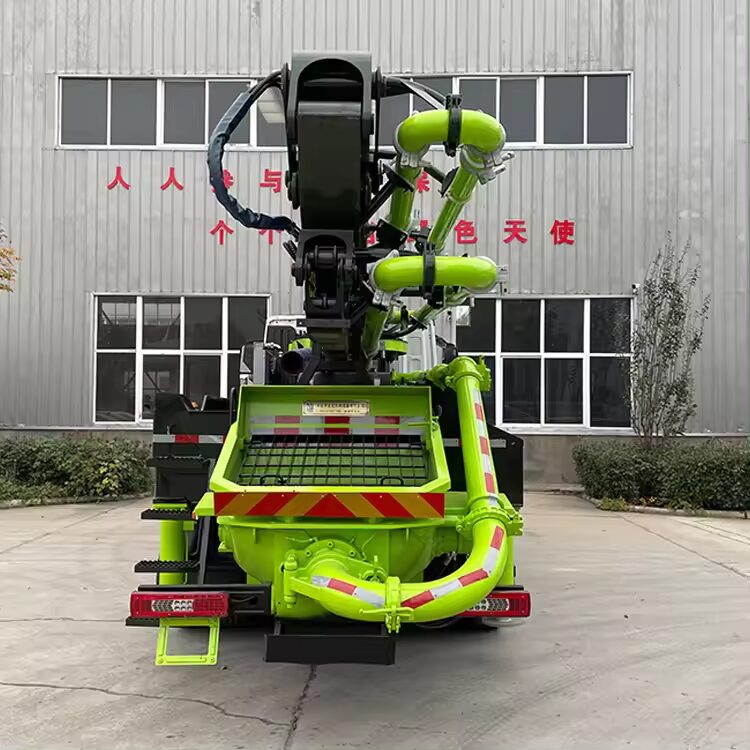

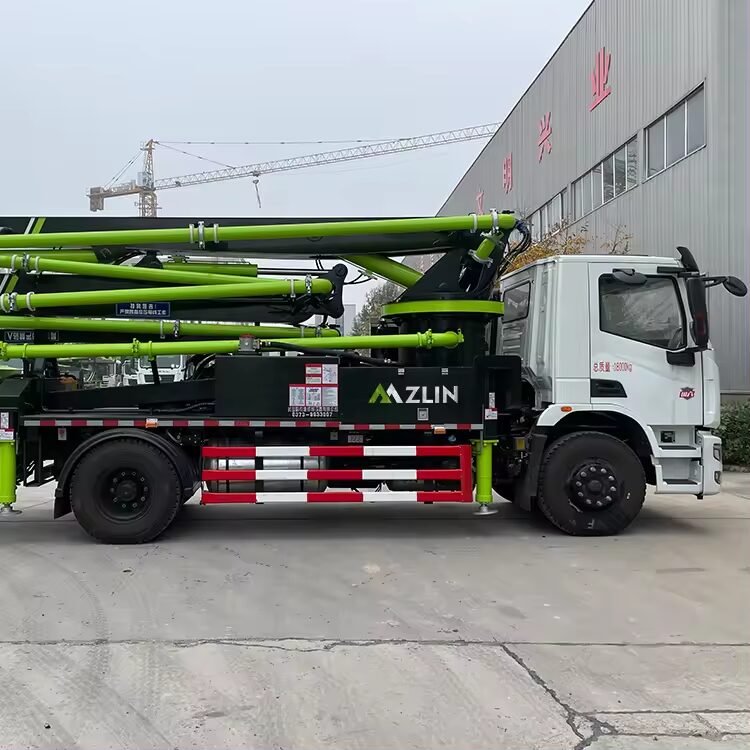

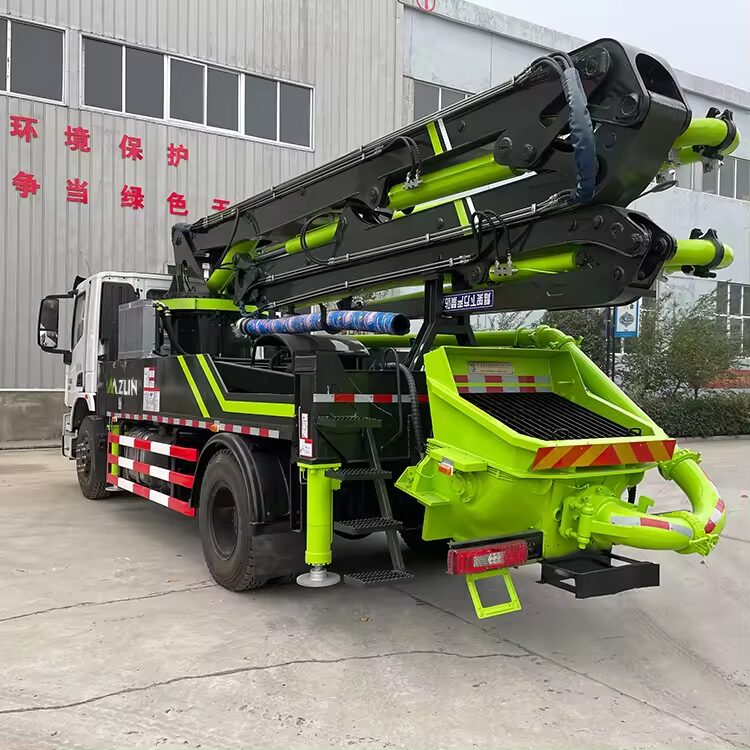

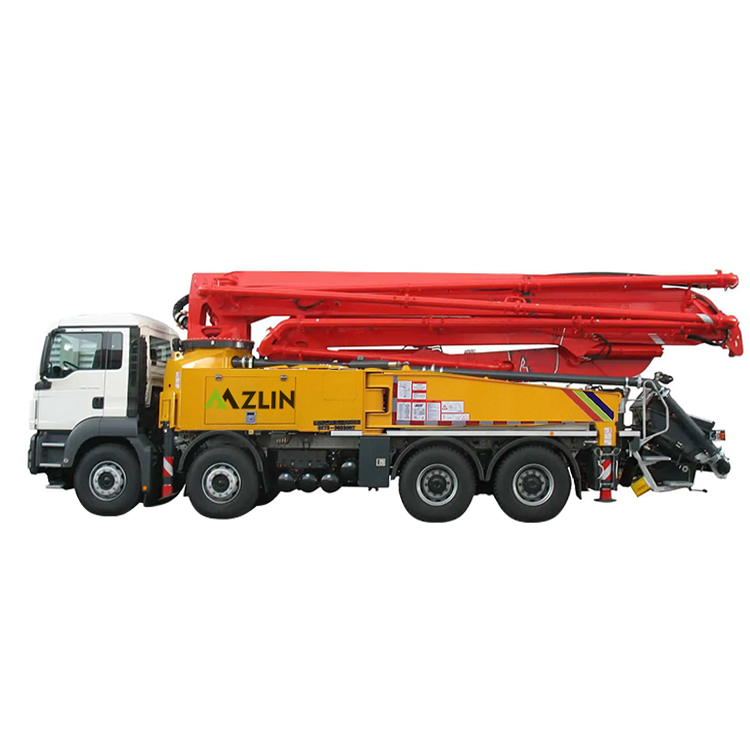

Boom pump truck is a type of mobile concrete pumping equipment. This type of pump truck is equipped with a retractable arm that helps remotely operate the mechanism to transport concrete to where it is needed. Boom pump trucks are typically used on large projects that require large amounts of concrete, such as high-rise buildings and large infrastructure.
1. High configuration: using international high-end brand core components, long-term strategic partners with Stiebel, Rexroth, HAWE, HBC, Walvoil, NEM, and Eaton;
2. Stable performance and low failure rate;
3. High construction efficiency and wide construction scope: equipped with high and low pressure automatic switching function, pumping has adaptive function, energy-saving and efficient features;
4. Strong human-machine interaction, intelligent control, and easy operation
Boom pumps are used in a variety of construction and industrial settings where concrete needs to be efficiently and precisely placed. Some common applications and scenarios where boom pumps are utilized include:
High-rise Construction: Boom pumps are essential for delivering concrete to elevated locations, such as the upper floors of high-rise buildings, where traditional methods may be impractical or time-consuming.
Large-scale Infrastructure Projects: These pumps are commonly used in the construction of bridges, dams, tunnels, and other large infrastructure projects where a significant amount of concrete needs to be placed efficiently and accurately.
Urban Construction: In urban environments with limited access and space constraints, boom pumps provide the flexibility to reach over obstacles and deliver concrete to the desired location without disrupting traffic or causing logistical challenges.
Remote or Difficult-to-Access Sites: Boom pumps are valuable in reaching remote or challenging terrain where traditional concrete delivery methods may be impractical, such as in mining operations, remote construction sites, or industrial facilities.
Vehicle parameters | Overall dimension | 11700*2500*3950mm | |
Weight | 35000kg | ||
Chassis brand | HOWO | ||
Drive type | 6×4 | ||
Engine model | WP10.340E22 | ||
Output power | 294kw/1900rpm | ||
Emission standard | Euro II | ||
Tyre | 12.00R20 | ||
Wheelbase | 4650+1400mm | ||
Boom & Outrigger parameters | Boom vertical height | 47m | |
Boom horizontal length | 42.6m | ||
Boom vertical depth | 29.4m | ||
Boom folding form | 5RZ | ||
First boom | Length | 9500mm | |
Corner | 89° | ||
Second boom | Length | 7700mm | |
Corner | 180° | ||
Third boom | Length | 7550mm | |
Corner | 180° | ||
Fourth boom | Length | 8900mm | |
Corner | 243° | ||
Fifth boom | Length | 9000mm | |
Corner | 214° | ||
End conveyor hose | Length | 3m | |
Turntable rotation angle | ±360° | ||
Front outrigger deployment width | 8500mm | ||
Rear outrigger deployment width | 9400mm | ||
Longitudinal distance between front and rear outrigger | 9000mm | ||
Outrigger opening method | Front outrigger | X-shaped | |
Rear outrigger | Swinging | ||
Pumping system parameters | Theoretical concrete displacement | Low pressure | 163m³/h |
High pressure | 97m³/h | ||
Theoretical pumping pressure | Low pressure | 8MPa | |
High pressure | 12MPa | ||
Theoretical pumping frequency | Low pressure | 32 | |
High pressure | 19 | ||
Distribution valve form | S valve | ||
Inner diameter/stroke of conveying cylinder | 260/1600mm | ||
Main oil pump displacement | 260ml/r | ||
Bucket capacity | 0.6m³ | ||
Feeding height | 1450mm | ||
Inner diameter of conveying pipe | 125mm | ||
Max. aggregate size | 40mm | ||
Concrete slump | 160-220mm | ||
System oil pressure | 31.5MPa | ||
Hydraulic oil capacity | 400L | ||
Hydraulic system type | Open | ||
High and low voltage switching | Automatic switching | ||
Hydraulic oil cooling method | Forced air cooling | ||
Cleaning method for concrete pipes | Water wash | ||
Lubrication method | Centralization lubrication | ||
Spare parts brand | Transfer box | Zhuzhou Gear | |
Main oil pump | REXRTOH | ||
Boom pump | PUSH | ||
Constant pressure pump | PUSH | ||
Gear pump | Wany | ||
Boom multi way valve | Km Hydraulic | ||
Boom balance valve | REXRTOH | ||
Valve group | EATON |
